Aleph, AL-40S, ARDB0049, Optional Narrow Curtain Lens (2mW ×17mL)

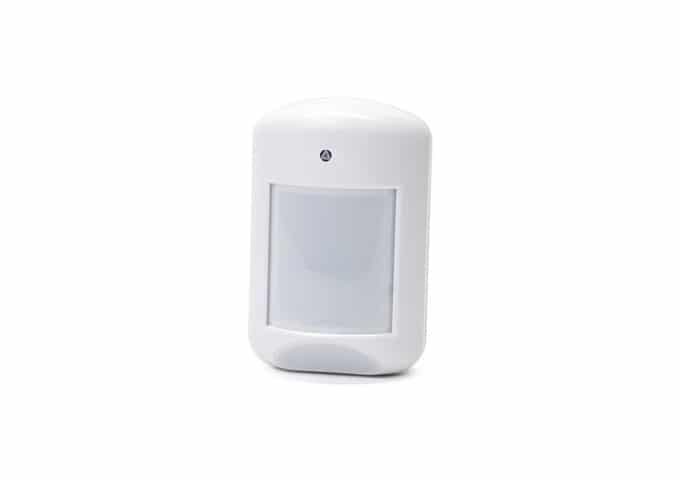

The Aleph AL-40S with ARDB0049 Optional Narrow Curtain Lens (2mW × 17mL) enhances the detection capabilities of the AL-40S PIR sensor. This narrow curtain lens focuses the sensor's detection range, providing precise coverage over a 17-meter long and 2-meter wide area. It is particularly useful for securing narrow or specific areas, such as hallways or corridors. The lens minimizes detection of unnecessary movement while increasing sensitivity in the desired detection zone. With this lens, the Aleph AL-40S offers greater flexibility and accuracy, making it an ideal solution for targeted motion detection in both residential and commercial environments.
Features
- Sold 1 EA or 100 EA in Case
- QMA - Qualified Motion Analysis
- Rock Solid RFI immunity
- Dual slope Temperature Compensation
- 60 lb. Pet Immunity
- Optional 100 lb. Animal Immunity Lens Included
- Multi-function LED
- Ambient Temperature Detection,
- Self-dimming LED
- Tamper Switch
- Detection Area 40' x 40' (12m)
- Color:
- UPC: 6938942620403 (White) P/N: AL-40
Specifications:
| Specifications | AL-40 |
|---|---|
| Type | QMA - Qualified Motion Analysis |
| Input Voltage | 10.6 to 16VDC |
| Input Current | 15 mA maximum, 10 mA quiescent (approx.) |
| Pyro Type | Dual element |
| Pulse Count | 2/4 pulses (selectable) |
| Warm Up Period | 50 secs. max. |
| Alarm Period | 2.4 secs, retriggerable |
| Visual Indicator | Red Alarm LED (selectable on /off ) |
| Alarm Output | NC dsolid state, 19 VDC, 100 mA, 13 ohms resistance typ. |
| Tamper Output | NC, dry contact, 30 VDC, 500 mA, 5 W max. |
| Mounting Height | 6.5 to 8.5 ft. (2 to 2.6m) |
| OperatingTemperature | +14° F to +131° F; Humidity: 95% max. |
| Dimensions | 3.9" (98mm) L; 2.5" (64mm) W; 1.7" (42mm) H |
| Weight | 3.0 oz. (83.5g) |
