Desfire, WR-M5 Desfire Reader, Mullion Size, 26 Bit Out Custom Key
Desfire, WR-M5 Desfire Reader, Mullion Size, 26 Bit Out Custom Key
Part Number:
DES006
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Desfire, WR-M5 Desfire Reader, Mullion Size, 26 Bit Out Custom Key

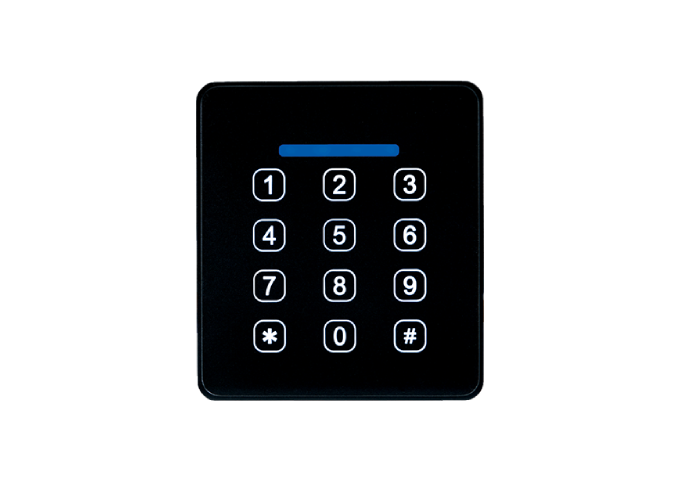

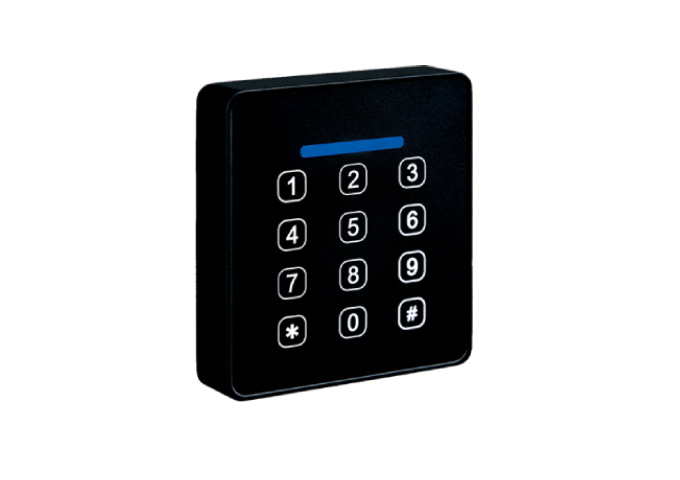

The Desfire WR-M5 Reader is a compact, mullion-sized proximity reader designed for seamless integration into access control systems. Offering a 26-bit Wiegand output, it supports custom keys and enhances security by working specifically with Desfire technology. With added Bluetooth compatibility, it allows convenient mobile access and supports various access formats. The durable construction is ideal for high-traffic settings, and its mullion size makes it suitable for narrow spaces. This versatile reader enhances security with custom configurations and Bluetooth, accommodating evolving access control needs effectively.
Wiegand/OSDP v2 Access Control Reader
Chiyu Technology provides the latest access control reader to fulfill your whole access control solutions. These readers are with modern design and basic IP65 weatherproof. Both Wiegand and OSDP v2 reader support.
Features of Desfire, WR-M5 Desfire Reader:
It permits data to be encrypted during the transfer from readers to their hosts – and back. OSDP v2 also lets you configure a reader in real-time and directly from your control system; no more disconnecting or uninstalling readers. Importantly, CHIYU'S OSDP v2 readers use MIFARE DESFire technology, so seamlessly integrate into an existing MIFARE system is provided.
Specifications:
- RFID Card Type: Mifare (13.56MHz)
- NFC Verification + Bluetooth Verification (WR-M5/TWR-M5)
- Reading Range: 5 ~ 10 cm
- Time for Card verification: 100ms
- Power Consumption: Avg. 300mA
- Communication: Wiegand/RS485 (Optional OSDP)
- LED indicator: YES
- Transmit Distance: 100M
- ESD Protection: ± 2.5KV
- Power Requirement: 9 ~ 24VDC (200mA)
- Operation Temperature: 0 °C ~ 55 °C
- Operation Humidity: 5% ~ 80%
- Build-In Transceiver / Receiver, Watch Dog.
- IP65 Weather Proof, Reader anti-collision, Self-Diagnostic, Surge Protection, Buzzer.
- Dimension: 84.2 x 93.7 x 20mm (WR-M5/TWR-M5)
- Weight: 95g
