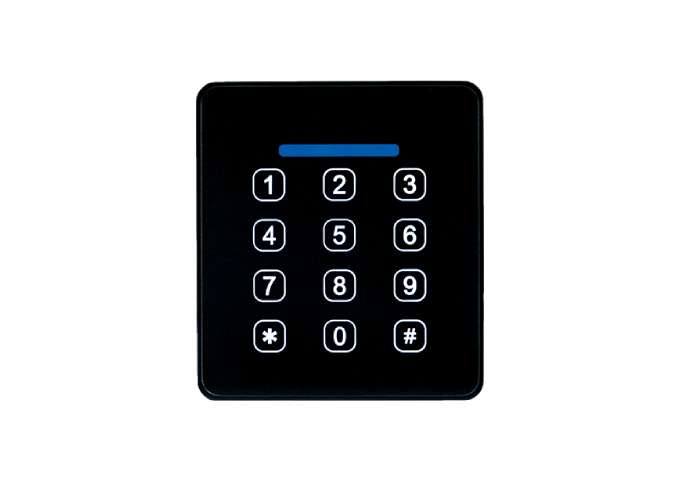

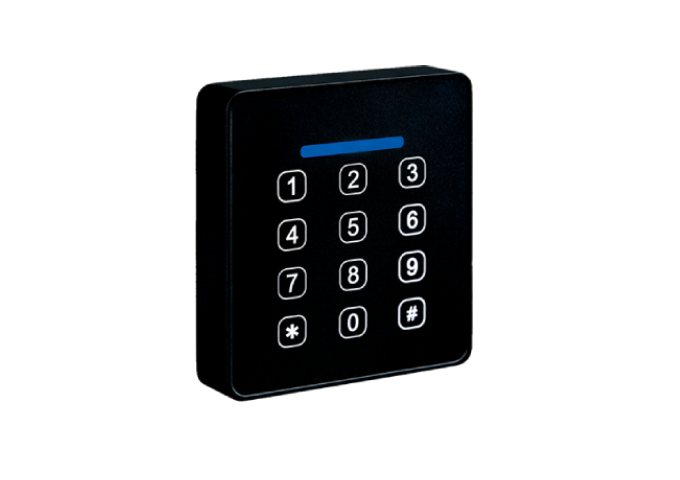

Desfire, WR-M5 Desfire Reader, Mullion Size, 26 Bit Out Custom Key With Bluetooth
Desfire, WR-M5 Desfire Reader, Mullion Size, 26 Bit Out Custom Key With Bluetooth
Part Number:
DES006BT
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Desfire, WR-M5 Desfire Reader, Mullion Size, 26 Bit Out Custom Key With Bluetooth
The Desfire WR-M5 Reader is a versatile, Bluetooth-enabled mullion-sized device designed for secure access control. With a compact form factor, it integrates easily into various entry points, offering reliable 26-bit output functionality and customizable key options. Its Bluetooth capability ensures flexible, contactless access, enhancing convenience for users. The reader supports Desfire technology, known for advanced encryption and high security, making it ideal for modern access management. Additionally, the device's rugged build suits both indoor and outdoor environments, providing durability and consistent performance in demanding settings.
Wiegand/OSDP v2 Access Control Reader
Chiyu Technology provides the latest access control reader to fulfill your whole access control solutions. These readers are with modern design and basic IP65 weatherproof. Both Wiegand and OSDP v2 reader support.
Features of Desfire, WR-M5 Desfire Reader:
It permits data to be encrypted during the transfer from readers to their hosts – and back. OSDP v2 also lets you configure a reader in real-time and directly from your control system; no more disconnecting or uninstalling readers. Importantly, CHIYU'S OSDP v2 readers use MIFARE DESFire technology, so seamlessly integrate into an existing MIFARE system is provided.
Specifications:
- RFID Card Type: Mifare (13.56MHz)
- NFC Verification + Bluetooth Verification (WR-M5/TWR-M5)
- Reading Range: 5 ~ 10 cm
- Time for Card verification: 100ms
- Power Consumption: Avg. 300mA
- Communication: Wiegand/RS485 (Optional OSDP)
- LED indicator: YES
- Transmit Distance: 100M
- ESD Protection: ± 2.5KV
- Power Requirement: 9 ~ 24VDC (200mA)
- Operation Temperature: 0 °C ~ 55 °C
- Operation Humidity: 5% ~ 80%
- Build-In Transceiver / Receiver, Watch Dog.
- IP65 Weather Proof, Reader anti-collision, Self-Diagnostic, Surge Protection, Buzzer.
- Dimension: 84.2 x 93.7 x 20mm (WR-M5/TWR-M5)
- Weight: 95g
