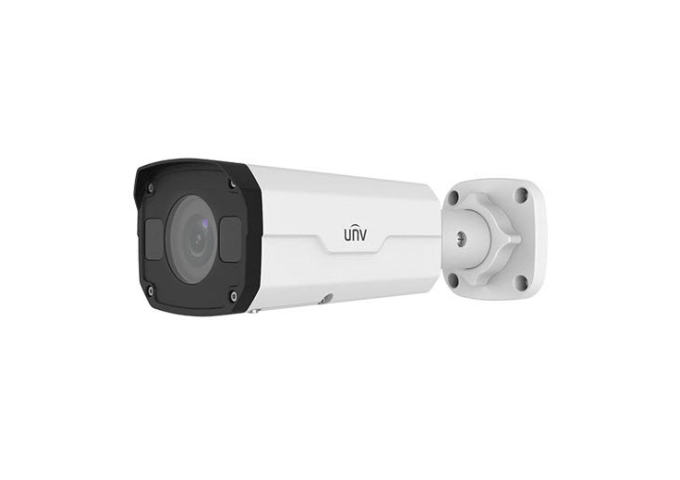

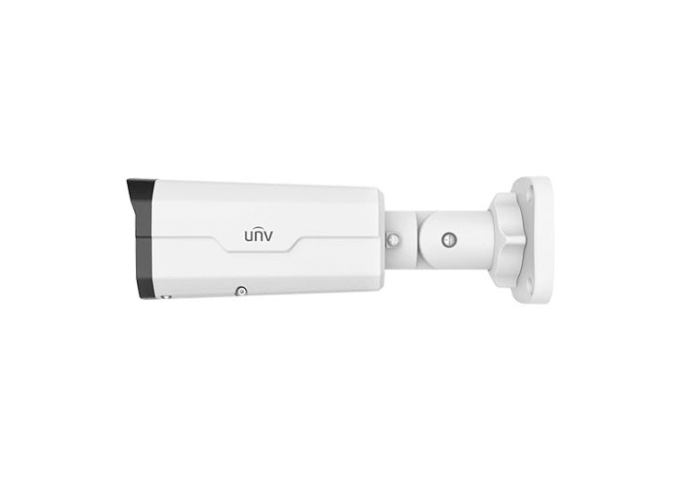

UNIVIEW, IPC2325LBR3SPZ28, 5MP 2.8-12mm Motorised Varifocal Bullet. Non Starlight
UNIVIEW, IPC2325LBR3SPZ28, 5MP 2.8-12mm Motorised Varifocal Bullet. Non Starlight
Part Number:
UNI585A
Need help? Contact Us Now!
Trade pricing available via login.
View full details
UNIVIEW, IPC2325LBR3SPZ28, 5MP 2.8-12mm Motorised Varifocal Bullet. Non Starlight
The UNIVIEW IPC2325LBR3SPZ28 is a high-performance 5MP motorized varifocal bullet camera with a 2.8-12mm lens. It delivers clear and detailed images for reliable surveillance. Ideal for various environments, this non-starlight model offers flexibility, precise focus adjustments, and excellent monitoring capabilities, ensuring robust and efficient security coverage.
Features:
Optics
- Day/night functionality
- Smart IR, up to 30 m (98 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- 2D/3D DNR (Digital Noise Reduction)
Compression
- Ultra 265,H.265, H.264, MJPEG
- ROI (Region of Interest)
Network
- ONVIF Conformance
Structure
- Wide temperature range: -30 °C to 60 °C (-22 °F to 140 °F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Specifications
| IPC2325LBR3-SP-D | IPC2325LBR3-SPZ28-D | |||||||||
| Camera | ||||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.8 ~ 12mm, manual zoom lens | 2.8 ~ 12mm, motorized zoom lens | ||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | ||||||
| 12 | 270 | 108 | 54 | 27 | ||||||
| Angle of View (H) | 105.3 ° ~ 25.4 ° | |||||||||
| Angle of View (V) | 69.5 ° ~ 18.4 ° | |||||||||
| Angle of View (O) | 136.9 ° ~ 31.2 ° | |||||||||
| Adjustment angle | Pan: 0 ° ~ 360 ° | Tilt: 0 ° ~ 90 ° | Rotate: 0 ° ~ 360 ° | |||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | |||||||||
| Minimum Illumination | Colour: 0.01Lux (F1.8, AGC ON) 0Lux with IR on |
|||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| S/N | >52dB | |||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||||
| Wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Defog | Digital Defog | |||||||||
| WDR | DWDR | |||||||||
Video |
||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main Profile | |||||||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; Sub Stream: 720P (1280*720), Max 20fps |
|||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| OSD | Up to 4 OSDs | |||||||||
| Privacy Mask | Up to 4 areas | |||||||||
| ROI | Up to 2 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/ Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180 ° | |||||||||
| Dewarping | NA | |||||||||
| HLC | Supported | |||||||||
| BLC | Supported | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256 GB | |||||||||
| Network Storage | ANR | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
| Client | EZStation EZView EZLive |
|||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
Interface |
||||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||||
| Certifications | ||||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||||
General |
||||||||||
| Power | DC 12V ±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 7.0W | ||||||||||
| Dimensions (L × W × H) | 240.3 × 86.4 × 75.6mm (9.46†× 3.4†× 2.98â€) | |||||||||
| Net Weight | 1kg (2.2lb) | |||||||||
| Material | Metal | |||||||||
| Working Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Strorage Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) | |||||||||
| Surge Protection | 6KV | |||||||||
| Ingress Protection | IP67 | |||||||||
