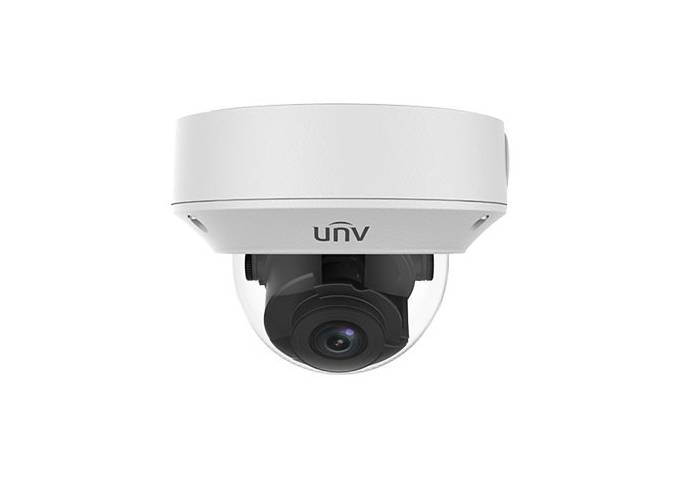

UNV IPC3235ER3-DUVZ, Dome IP67 IR 5MP 2.7-13.5 Motorised
UNV IPC3235ER3-DUVZ, Dome IP67 IR 5MP 2.7-13.5 Motorised
Part Number:
UNI581
Need help? Contact Us Now!
Trade pricing available via login.
View full details
UNV IPC3235ER3-DUVZ, Dome IP67 IR 5MP 2.7-13.5 Motorised
Optics
- LightHunter
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- Up to 120dB Optical WDR (Wide Dynamic Range)
- 2D/3D DNR (Digital Noise Reduction)
- Built-in motorized lens for remote zoom
Compression
- Ultra 265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Built-in PoE splitter that outputs DC 12V
- Wide temperature range: -40°C to 60°C (-40°F to 140°F)
- Wide voltage range of±25%
- IK10 vandal resistant
- IP67
- 3-Axis
Specifications (UNV IPC3235ER3-DUVZ, Dome IP67 IR 5MP 2.7-13.5 Motorised):
| IPC3235ER3-DUVZ | ||||||||||
| Camera | ||||||||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||||
| Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens | |||||||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |||||
| 2.7 | 60.8 | 24.3 | 12.2 | 6.1 | ||||||
| 13.5 | 303.8 | 121.5 | 60.8 | 30.4 | ||||||
| Angle of View (H) | 93.38° ~ 28.56° | |||||||||
| Angle of View (V) | 88° ~ 16.4° | |||||||||
| Angle of View (O) | 121.4° ~ 33.7° | |||||||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | |||||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |||||||||
| Minimum Illumination | Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR |
|||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||||||
| S/N | >52dB | |||||||||
| IR Range | Up to 30m (98ft) IR range | |||||||||
| wavelength | 850nm | |||||||||
| IR On/Off Control | Auto/Manual | |||||||||
| Defog | Digital Defog | |||||||||
| WDR | 120dB | |||||||||
Video |
||||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | |||||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | |||||||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 20fps; 5MP (2592*1944), Max 25fps (WDR OFF); 4MP (2560*1440), Max 30fps; 3MP (2048*1536), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps |
|||||||||
| Video Bit Rate | 128 Kbps~16 Mbps | |||||||||
| 9:16 Corridor Mode | Supported | |||||||||
| OSD | Up to 8 OSDs | |||||||||
| Privacy Mask | Up to 8 areas | |||||||||
| ROI | Up to 8 areas | |||||||||
| Motion Detection | Up to 4 areas | |||||||||
| Image | ||||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | |||||||||
| Digital noise reduction | 2D/3D DNR | |||||||||
| Smart IR | Support | |||||||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | |||||||||
| Dewarping | Support | |||||||||
| HLC | Support | |||||||||
| BLC | Support | |||||||||
| Audio | ||||||||||
| Audio Compression | G.711 | |||||||||
| Two-way audio | Supported | |||||||||
| Suppression | Supported | |||||||||
| Sampling Rate | 8KHZ | |||||||||
| Storage | ||||||||||
| Edge Storage | Micro SD, up to 256GB | |||||||||
| Network Storage | ANR, NAS(NFS) | |||||||||
| Network | ||||||||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | |||||||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | |||||||||
| Client | EZStation EZView EZLive |
|||||||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | |||||||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | ||||||||||
Interface |
||||||||||
| Audio I/O | Audio cable | |||||||||
| Input: impedance 35kΩ; amplitude 2V [p-p] | ||||||||||
| Output: impedance 600Ω; amplitude 2V [p-p] | ||||||||||
| Alarm I/O | 1/1 | |||||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||||
| Video Output | 1 BNC, impedance 75Ω; amplitude 1V [p-p] | |||||||||
| Certifications | ||||||||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||||
| General | ||||||||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | |||||||||
| Power consumption: Max 8.7W | ||||||||||
| Dimensions (Ø x H) | Φ148 x 111.3mm (Ø5.8†x 4.4â€) | |||||||||
| Net Weight | 0.92kg (2.0lb) | |||||||||
| Material | Metal + Plastic | |||||||||
| Working Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity:‰¤95% RH (non-condensing) | |||||||||
| Strorage Environment | -40°C ~ 60°C (-40°F ~ 140°F), Humidity:‰¤95% RH (non-condensing) | |||||||||
| surge protection | 6KV | |||||||||
| Ingress Protection | IP67 | |||||||||
| Vandal Resistant | IK10 | |||||||||
| Reset Button | Supported | |||||||||
