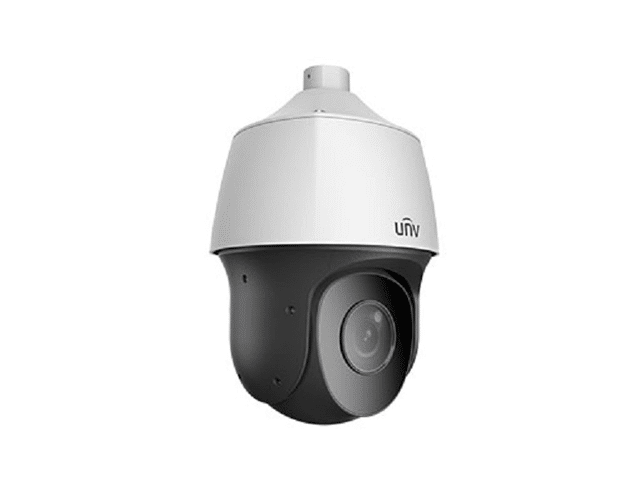

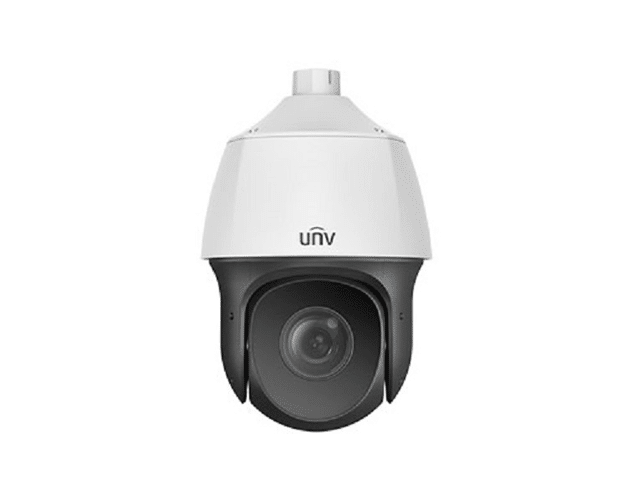

UNV IPC6322SR-X33DUP, IP66 2MP 33x Zoom 12v POE+ Navigator PTZ Camera
UNV IPC6322SR-X33DUP, IP66 2MP 33x Zoom 12v POE+ Navigator PTZ Camera
Part Number:
UNI312
Need help? Contact Us Now!
Trade pricing available via login.
View full details
UNV IPC6322SR-X33DUP, IP66 2MP 33x Zoom 12v POE+ Navigator PTZ Camera
UNV IP66 2MP 33X ZOOM 12V POE+ NAVIGATOR PTZ CAMERA
- 1/2.8" progressive scan, 2.0 megapixel, CMOS
- Up to 1920×1080 resolution,30fps
- 33x optical zoom (4.5~148.5mm)
- Ultra 265,H.265, H.264, MJPEG
- Smart IR, up to 150m IR distance
- Alarm I/O,Audio I/O
- IP66, -40°C ~ +65°C
- PoE (PSE Required)
Overview (UNV IPC6322SR-X33DUP)
OPTICS
- 33X Optical Zoom
- Starlight illumination
- Fifth-generation infrared technology, more than 150m (492 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Optical glass window with higher light transmittance
- Smart IR
- EIS (Electronic Image Stabilization)
COMPRESSION
- Ultra 265, H.265, H.264, MJPEG
- Triple streams
- Customized OSD
NETWORK
- ONVIF Conformance
STRUCTURE
- Intelligent temperature control technology
- More effective heat dissipation system
- 6 KV surge protection designed for network interface
- IP66
| Camera | ||||||
| Sensor | 1/2.8", 2.0 megapixel, progressive scan, CMOS | |||||
| Lens | 4.5 ~ 148.5mm, AFautomaticfocusingandmotorizedzoomlens | |||||
| Digital Zoom | 16 | |||||
| Optical Zoom | 33 | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) | |
| Angle of View (V) | 4.5 | 69.8 | 27.9 | 14.0 | 7.0 | |
| Angle of View (O) | 148.5 | 2304.3 | 921.7 | 460.9 | 230.4 | |
| Angle of View (H) | 76.8° ~ 2.1° | |||||
| Angle of View (V) | 38.4° ~ 1.2° | |||||
| Angle of View (O) | 94.46° ~ 2.48° | |||||
| Shutter | Auto/Manual, shutter time: 1 ~ 1/100000s | |||||
| Minimum Illumination | Colour: 0.001Lux (F1.5, AGC ON) 0Lux with IR |
|||||
| Iris | F1.5 ~ F4.0 | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | |||||
| Digital noise reduction | 2D/3D DNR | |||||
| S/N | >55 dB | |||||
| IR Range | UP to 150m (492ft) | |||||
| Defog | Digital Defog | |||||
| WDR | 120dB | |||||
| Camera | |||||
| Sensor | 1/2.8", progressive scan, 2.0megapixel, CMOS | ||||
| Lens | 4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens | ||||
| Digital Zoom | 16 | ||||
| Optical Zoom | 33 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 4.5mm | 69.8(229ft) | 27.9(91.5ft) | 14(45.9ft) | 7(23ft) | |
| 148.5mm | 2304.3(7560ft) | 921.7(3024ft) | 460.9(1512.1ft) | 230.4(756ft) | |
| Angle of View (H) | 76.8°~ 2.1° | ||||
| Angle of View (V) | 38.4° ~ 1.2° | ||||
| Angle of View (O) | 94.46° ~ 2.48° | ||||
| Shutter | Auto/Manual; shutter time: 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.001 lux (F1.5, AGC ON) 0Lux with IR |
||||
| Iris | Auto/Manual; F1.5 ~ F4.0 | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >55dB | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265,H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:2MP (1920x1080):Max.‚30 fps; Sub Stream:2MP (1920x1080):Max. 30 fps; Third Stream: D1 (720x576): Max. 30 fps |
||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| EIS | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 24 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Smart | |||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Pan & Tilt | |||||
| Pan Range | 360° (endless) | ||||
| Pan Speed | 0.1°/s ~ 300°/s | ||||
| Preset speed:200°/s | |||||
| Tilt Range | -15° ~ 90° (auto reverse) | ||||
| Tilt Speed | 0.1° ~ 80°/s | ||||
| Preset speed: 80°/s | |||||
| Number of Presets | 1024 | ||||
| Patrol | Preset patrol, route patrol, recorded patrol | ||||
| Home Position | Supported | ||||
| Interface | |||||
| Audio I/O | 1 Input: impedance 1 k©; amplitude 2 V [p-p] | ||||
| 1 Output: impedance 600 ©; amplitude 2 V [p-p] | |||||
| Alarm I/O | 2/ 1 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| General | |||||
| Power | 12 V DC±25%, PoE(PSE Required) | ||||
| Power consumption: 16~ 30W | |||||
| Dimensions(ƒ˜xH) | ¦220 x 369mm (¦8.7¢‚¬ x 14.5¢‚¬) | ||||
| Weight | 3kg (6.6lb) | ||||
| Working Environment | -40°C ~ 65°C (-40°F ~ 149°F), Humidity: ¢€°¤95% RH (non-condensing) | ||||
| Ingress Protection | IP66 | ||||
| Reset Button | Supported | ||||
