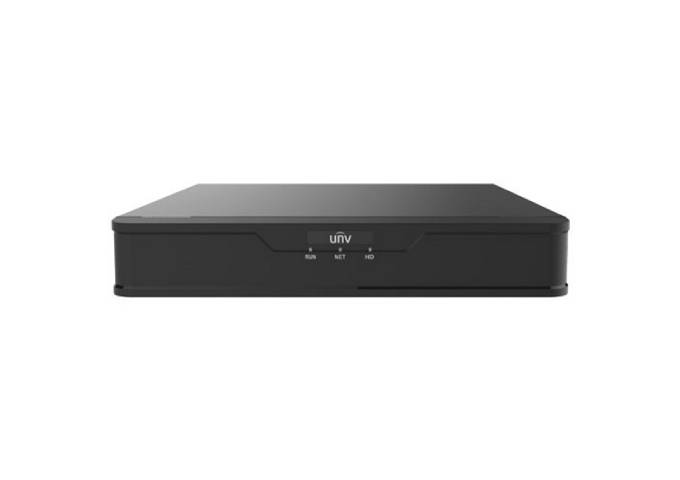

UNV NVR201-04U-1TB, Hybrid NVR 4CH 1Sata 1TB
UNV NVR201-04U-1TB, Hybrid NVR 4CH 1Sata 1TB
Part Number:
UNI951
Need help? Contact Us Now!
Trade pricing available via login.
View full details
UNV NVR201-04U-1TB, Hybrid NVR 4CH 1Sata 1TB
- Support H.264 video formats
- Support AHD, TVI, CVI,CVBS, IP cameras with adaptive access
- 4-channel BNC input
- Up to 5MP resolution for recording
- Support 1-ch HDMI, 1-ch VGA output at up to 1920*1080P
- Long transmission distance over coax cable
Specifications (UNV NVR201-04U-1TB, Hybrid NVR 4CH 1Sata 1TB):
| Video/Audio Input | |
| Analog Video Input | 4-ch, BNC |
| IP Video Input | 2-ch (only IP up to 6ch) |
| Supported Analog Camera Types | Support AHD input: 5MP, 4MP, 3MP, 1080P/30 Hz，1080P/25 Hz, 720P/30 Hz,720P/25 Hz, Support TVI input: 5MP,3MP,1080P/30 Hz, 1080P/25 Hz, 720P/30 Hz,720P/25 Hz Support CVI input: 1080P/25Hz, 1080P/30Hz, 720P/25Hz,720P/30Hz Support CVBS input |
| Audio Input | 4-ch, RCA |
| Two-way Audio Input | 1-ch, RCA |
| Network | |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output | |
| CVBS Output | / |
| HDMI/VGA Output | 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution | 5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF |
| Frame Rate | Mainstream: 5MP@10fps/4MP@12fps/3MP@16fps/1080P@25fps/720P@30fps/960H@30fps Sub stream: 960H/D1@16fps, CIF/QCIF@25fps/30fps |
| Audio Output | 1-ch, RCA |
| Synchronous Playback | 6-ch |
| Decoding | |
| Decoding format | H.264 |
| Live View/ Playback | 8MP(IP)/5MP/4MP/3MP/1080p/720p/960H/4CIF/CIF/QCIF |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 10TB for each HDD |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interfaces |
| Serial Interface | 1 x RS485 |
| USB Interface | Rear panel：1 x USB2.0,Front panel：1xUSB2.0 |
| General | |
| Power Supply | 12V DC Power Consumption:‰¤ 5 W( without HDD ) |
| Working Environment | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity‰¤ 90% RH(non-condensing) |
| Dimensions(W×D×H) | 260mm × 240mm× 44mm (10.2" × 9.4"×1.7") |
| Weight ( without HDD ) | ≤ 1.12 Kg ( 2.47 lb ) |
