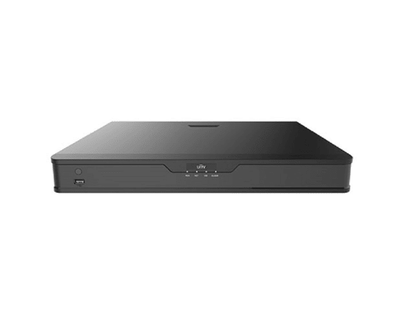

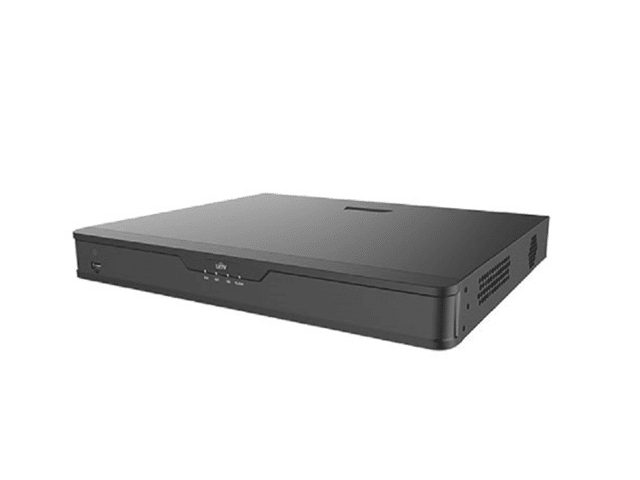

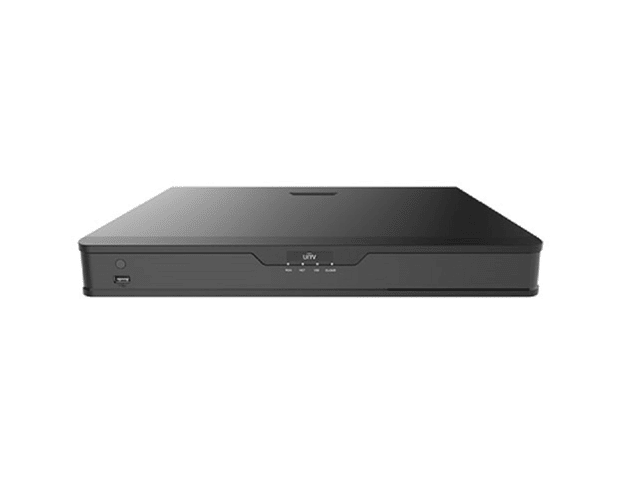

UNV NVR302-08E2-P8, NVR 8CH 2 SATA 8 PoE E2 No HDD
UNV NVR302-08E2-P8, NVR 8CH 2 SATA 8 PoE E2 No HDD
Part Number:
UNI904A
Need help? Contact Us Now!
Trade pricing available via login.
View full details
UNV NVR302-08E2-P8, NVR 8CH 2 SATA 8 PoE E2 No HDD
UNV NVR 8CH 2 SATA 8 POE E2 NO HDD
Features (UNV NVR302-08E2-P8):
- Support Ultra 265/H.265/H.264 video formats
- 8-channel input
- Supports mainstream cameras of ONVIF conformance(Profile S, Profile G, Profile T ) and RTSP protocols
- Support 1-ch HDMI, 1-ch VGA,HDMI at up 4K(3840x2160) resolution
- HDMI and VGA independent outputs provided
- Up to 12 Megapixels resolution recording
- 2 SATA HDDs, Up to 6TB for each HDD
- Support cloud upgrade
- Various fisheye dewarping modes for live view and playback for both web interface and GUI
- ANR technology to enhance the storage reliability when the network is disconnected
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
| Model | NVR302-08E2 | |||||
| Video/Audio Input | ||||||
| IP Video Input | 8-ch | |||||
| Two-way Audio Input | 1-ch, RCA | |||||
| Network | ||||||
| Incoming Bandwidth | 320Mbps | |||||
| Outgoing Bandwidth | 180Mbps | |||||
| Remote Users | 128 | |||||
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS,DNS,DDNS,SNMP,SMTP,NFS | |||||
| Video/Audio Output | ||||||
| HDMI/VGA Output | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI: 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
|||||
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Audio Output | 1-ch, RCA | |||||
| Audio Compression | G.711A, G.711U | |||||
| Synchronous Playback | 8-ch | |||||
| Live View Display | 1/4/6/8 | |||||
| Corridor Mode Screen | 3/4/5/7 | |||||
| Snapshot | FTP/Schedule/Event Snapshot | |||||
| Decoding | ||||||
| Decoding Format | Ultra 265, H.265, H.264 | |||||
| Live View/Playback | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF | |||||
| Capability | 1 x 12MP@30, 2 x 4K@30, 5 x 4MP@30, 9 x 1080P@30 | |||||
| Hard Disk | ||||||
| SATA | 2 SATA interfaces | |||||
| Capacity | up to 6TB for each HDD | |||||
| eSATA | NA | |||||
| Disk Group | Support | |||||
| General Alarm | ||||||
| General Alarm | Motion, Tampering, Human Body Detection, Video Loss, Input Alarm, Audio Detection | |||||
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal | |||||
| External Interface | ||||||
| Network Interface | 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces | |||||
| USB Interface | Front panel: 1 x USB2.0,Rear panel: 1 x USB2.0 1 x USB3.0 | |||||
| RS232 | NA | |||||
| RS485 | 1 | |||||
| Alarm In | 8-ch | |||||
| Alarm Out | 2-ch | |||||
| General | ||||||
| Power Supply | 12VDC/3.3A Power Consumption: ¢€°¤ 12 W (without HDD) |
|||||
| Working Environment | -10°C~+ 55°C (+14°F~+131°F), Humidity ¢€°¤ 90% RH (non-condensing) | |||||
| Dimensions (WxDxH) | 380mm x 315mm x 53mm (15.0" x 12.4"x 2.1") | |||||
| Weight (without HDD) | ¢€°¤1.8Kg (3.97lb) | |||||
| Certification | ||||||
| Certification | UL CE FCC RoHS WEEE |
|||||
