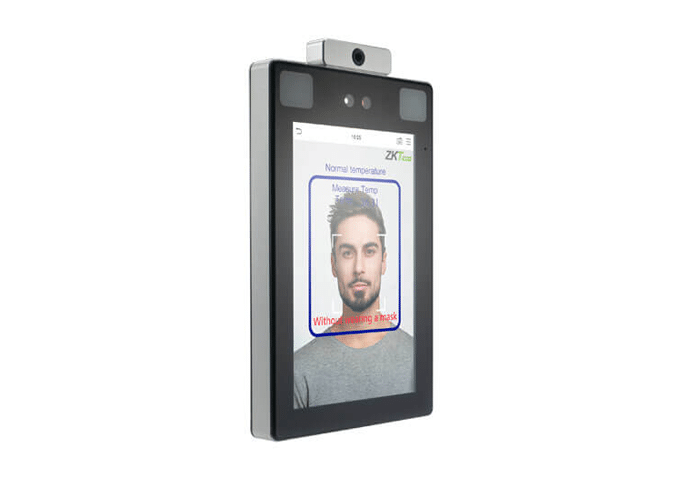

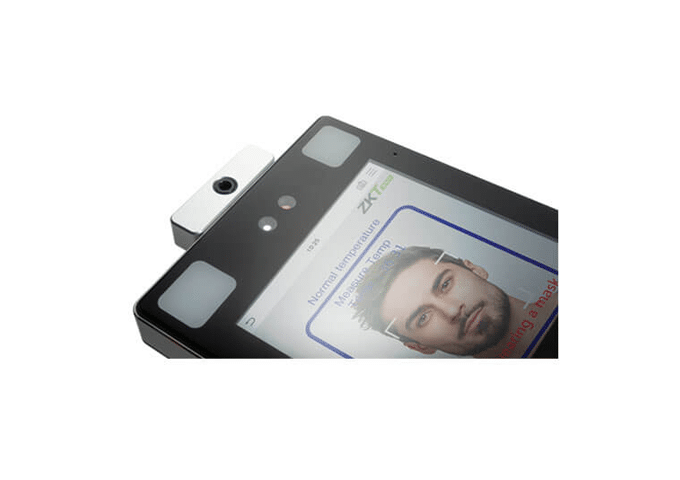

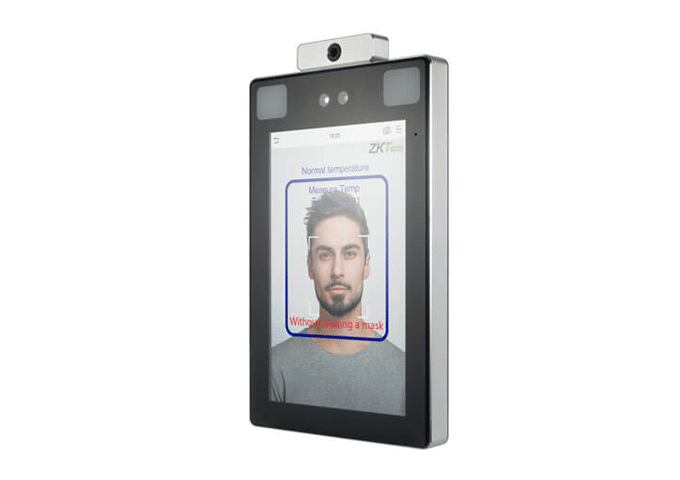

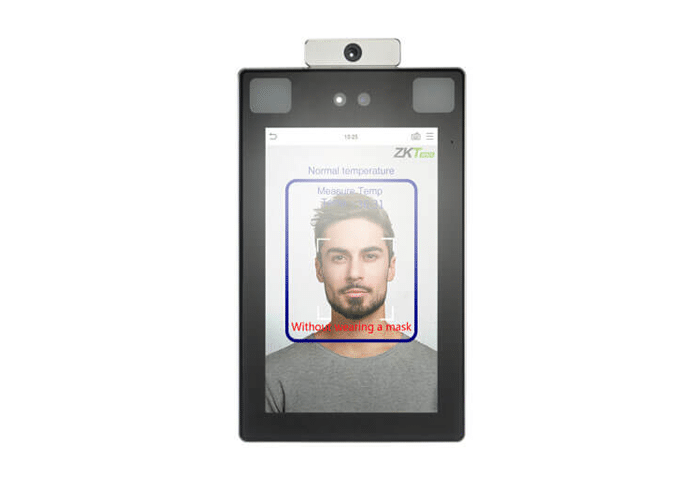

ZKTeco ProFace X(CH/TD) With WIFI (Standardalone Face Access Control) Barrier Installation Version

ProFace X [TD] is a fully upgraded version of the ProFace product line, which is designed to deal with all kinds of scenarios. Powered by the ZKTeco-customized CPU for running the intellectualised engineering facial recognition algorithm and the latest computer vision technology, ProFace X [TD] supports both facial and palm verification with large capacity and rapid recognition speed, boosting the security performance in all aspects.

Features:

• Imaging Temperature Detection Termina
• Detection Time: ≤0.2s
• Measurement Distance :30120cm
• (Standardalone Face Access Cotrol)
• Barrier installation version
• Fixed barrier bracket including
• ZKTeco Logo Standard

Parameter (ZKTeco ProFace X):

(: GL Exclusive Feature)

Capacity
Faces	30,000 (1:N) / 50,000 (Optional)
Palm	5,000 (1:N)
Users	50,000
Transactions	1,000,000 / 2,000,000(Optional)
User Photos	10,000
Event Photos	10,000
Compatibility	Security Relay Box / Wiegand / RS485 / RS232 Slave Readerwith FP / RFID / Barcode / QR-code / ZKBioSecurity Software
Hardware	900MHz Dual Core CustomizedComputer vision CPU
	512MB RAM / 8G Flash
	8" Hight light (400lux) IPS Touch LCD
	2MP WDR Low Light Camera
	Adjustable Light brightness LED
	Hi-Fi Voice
	High Sensitivity Microphone
	Distance Detection Sensor
	Reset Button and Tamper Switch
Access Control Interface	Lock Relay Output / Alarm Output / Auxiliary Input / Exit Button / Door Sensor
Special Functions	0.3s Hight Speed Facial Verification
	Liveness Detection
	HTTPS Communication Encryption (Optional)
	Event Snapshot
Standard Functions	Access Levels, Groups, Holidays, DST,Duress Mode (Password), Anti-Passback, Record Query, Tamper Switch Alarm,Custom Wallpaper & Screen Saver
Preventative Measures	Mask detection
	Body temperature detection
Temperature Measurement Distance:	30cm~50cm (1ft~1.64ft)
Temperature Measurement Accuracy:	±0.3°C (±32.54°F)
Temperature Measurement Range:	34°C~45°C (93.2°F~113°F)
Communication	TCP/IP / Wiegand Input / Output / Wi-Fi (Optional) / RS485 / RS232
Additional Info
Face Algorithm:	ZKLiveFace5.8
Palm:	FAR ≤0.01%; FRR ≤1%
Working Temperature:	16°C ~ 32°C (60.8°F ~ 89.6°F)
Working Humidity:	≤93%
Storage Temperature:	-40°C ~ 65°C (-40°F ~ 149°F)
Storage Humidity:	≤93%
Net Weight:	853g
Dimensions (H*L*D):	227*143*26.1mm
Power	Operating Voltage: 12V DC Current Draw: <2,000mA
