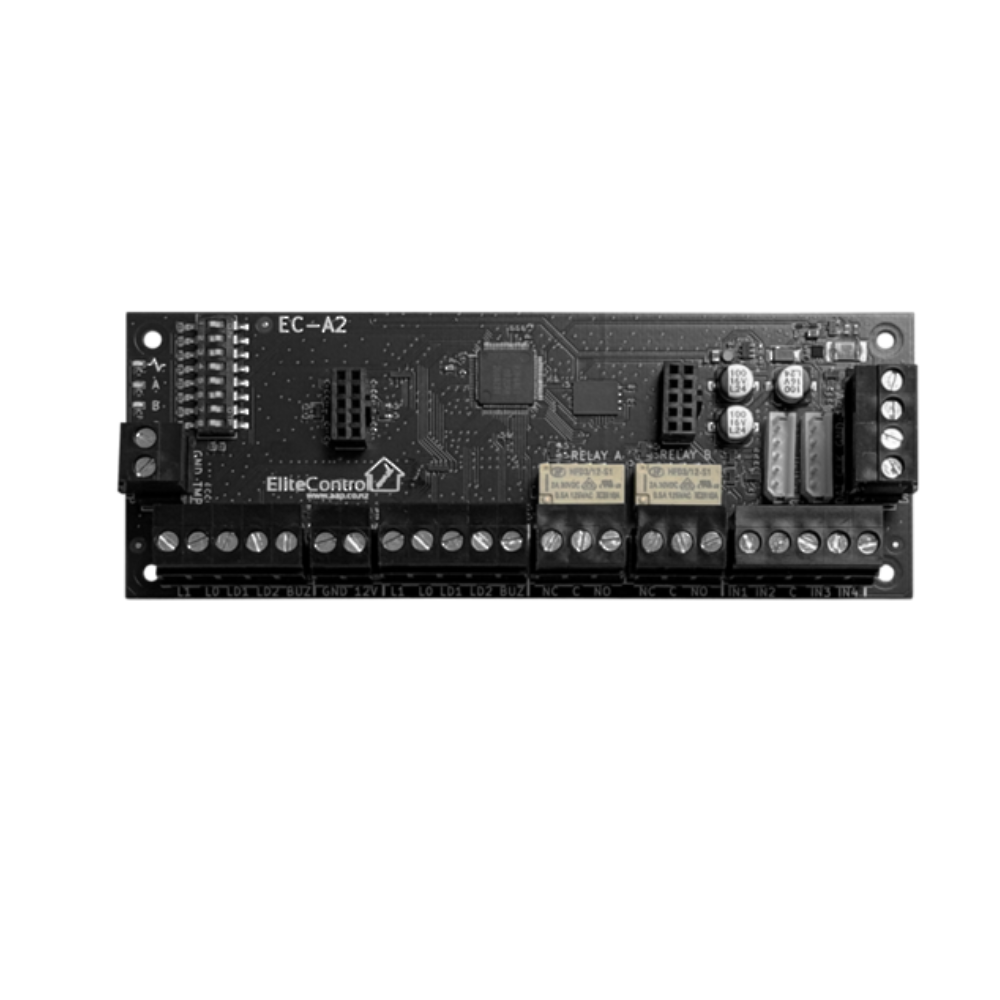

AAP, EC-A2 Rex, 2 Door Access Control Module for EC & EC-I Systems only

The EX-A2 REX Module is a versatile expansion module designed to enhance the functionality of Elite SX access control systems. Providing additional Request-to-Exit (REX) and configurable input capabilities, the EX-A2 enables seamless integration with exit buttons, sensors, and other access control devices.

With its compact design and straightforward installation, the EX-A2 simplifies system expansion while maintaining reliable performance and flexibility. The module communicates efficiently with the Elite SX controller, ensuring fast and accurate processing of input events across the access control system.

Built for long-term reliability, the EX-A2 is suitable for a wide range of commercial and industrial installations. Its scalable design allows multiple modules to be added to a single control panel, making it ideal for growing access control requirements.

Features

• Supports 2 reader/keypad inputs for enhanced access control functionality.
• Includes 4 inputs, comprising 2 dedicated REX inputs and 2 assignable inputs.
• Features 2 clean relay outputs rated at 2A @ 30V.
• Seamlessly integrates with Elite SX and EC series access control systems.
• Quick-connect keypad bus sockets simplify installation and system expansion.
• Supports keypad bus updates for improved compatibility and functionality.
• Large plug-in terminals provide secure and convenient wiring connections.
• Allows up to 16 EX-A2 modules to be connected to a single EC control panel.
• Durable design ensures reliable operation in demanding environments.
• User-friendly configuration enables fast commissioning and deployment.
• Backed by a 5-year warranty for long-term peace of mind.
• Compatible with optional battery-backed power supplies including the EC-PSU2 and EC-PSU5.
