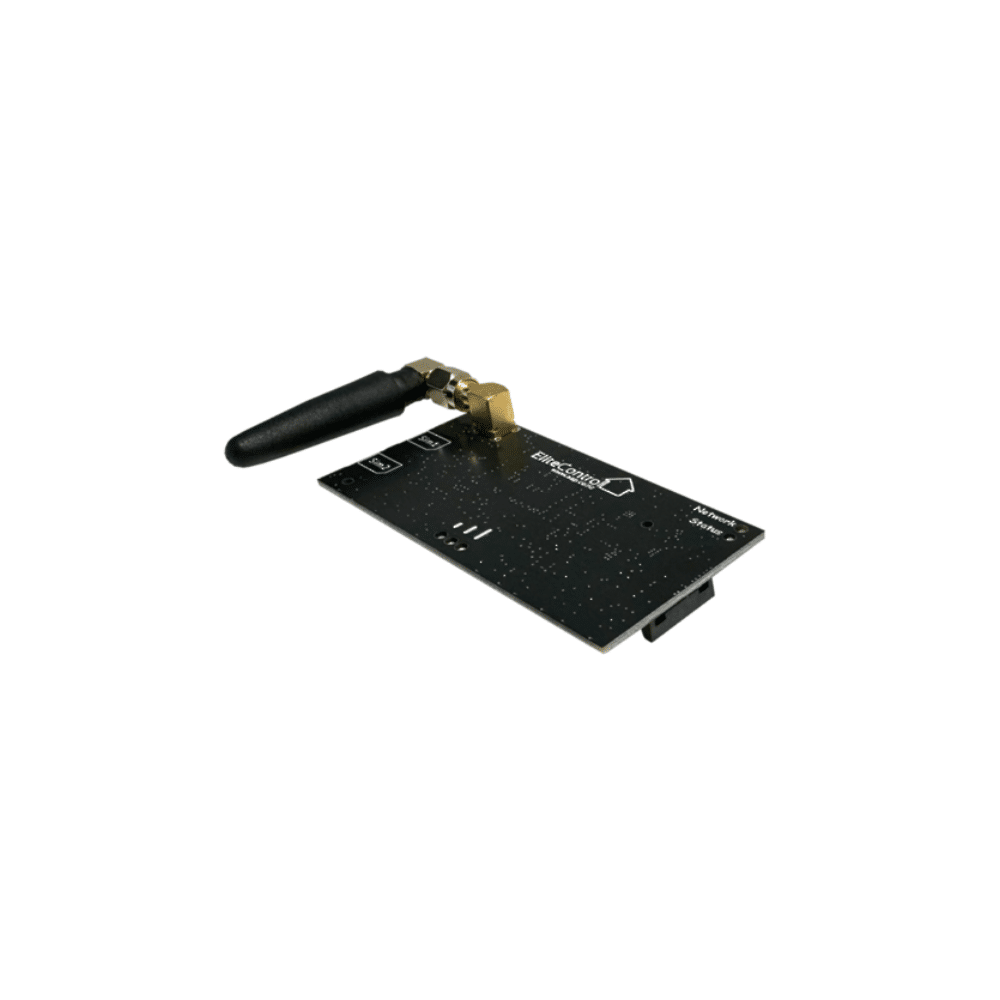

AAP EC-i 4G Plug on 4G Cellular Board for EC-i & EC-PCB
AAP EC-i 4G Plug on 4G Cellular Board for EC-i & EC-PCB
Part Number:
AAP320
Need help? Contact Us Now!
Trade pricing available via login.
View full details
EC-i 4G is a Plug on 4G Cellular board for EC-i and EC-PCB
EC-i 4G Supports:
- EliteCloud APP including push notifications
- EliteCloud programming dashboard
- CMS reporting (Patriot, CSV & DC-09)
- Supports almost any Data SIM
- Primary cellular or cellular backup
- New Zealand designed & manufactured
- Dual SIM’s for primary & back-up cellular provider
Note: (SIM cards not included)
EC-i 4G Specifications:
|
Installation |
Simple Plug on (Exp A) |
|
Frequency Bands |
LTE -FDD - B1/3/7/8/20/28 GSM - B3/8 |
|
Dual SIM’s |
Yes, suitable for primary & back-up cellular provider |
|
Compatible Control Panels |
EC-PCB & EC-i (Firmware version 10.3.42 & above) |
|
4G Antenna |
Supplied |
|
Antenna Extension |
Supplied with 200mm antenna extension complete with chassis mount SMA connector |
|
Back-up capability |
Back-up to fibre internet or primary connection |
|
IP Monitoring |
Supported |
|
Installer Dashboard |
Supported |
|
SIM’s |
Supported by any Data SIM (SIM cards not included) |
