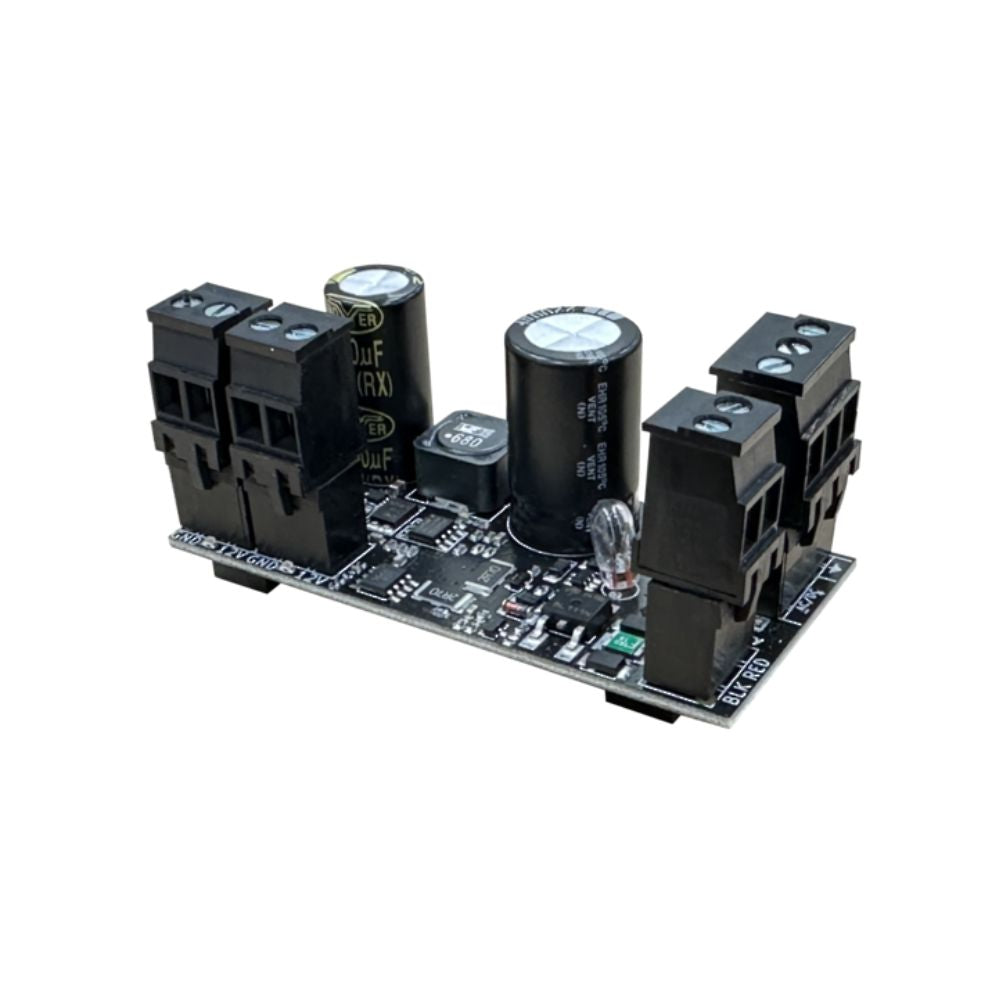

AAP EC-PSU2 Eci Plug in 1A Power Supply Module (requires transformer)

Compact plug in power supply for EC-A2, EC-Z8 & EC-04 expander modules. Provides expander & peripheral products up to 1.4A of current with battery charging & back up.

Each EC-PSU2 sends battery, AC & supervision status directly to the ESC control panel for local or central station monitoring.

Features:

• Input - 15-24VAC or 24VDC
• Output - up to 1.4A @ 13_8VDC
• Battery charging - 250mA
• Dynamic battery monitoring
• AC monitoring
• Supervision from EC control panel
• Thermal output protection
• Passes power to primary board
• 5 year warranty
• Dimensions - 78 x 36 x 41mm
