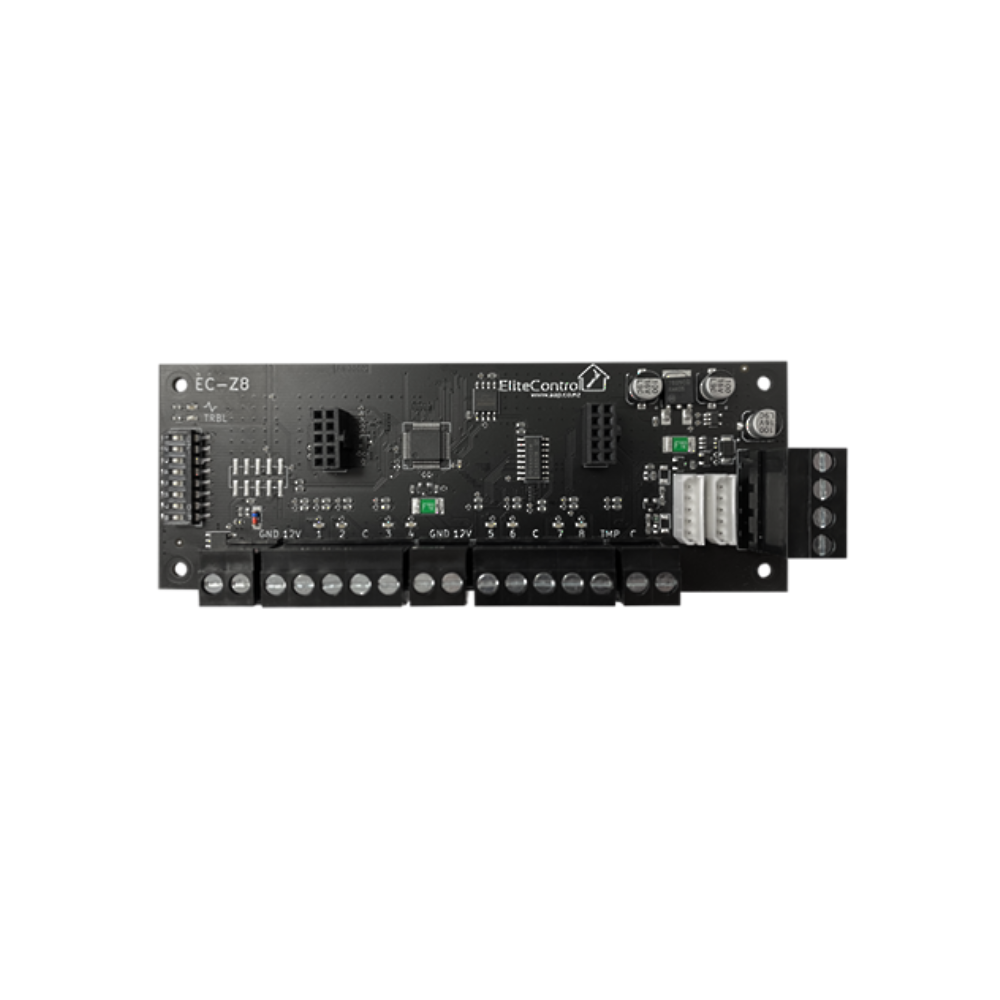

AAP, EC-Z8, 8 Zone Expander for EC Security & Control Systems

The AAP EC-Z8 is an 8-zone expander module designed to extend the capabilities of EC security and control systems.

Each module features 8 individually configurable inputs plus a system tamper terminal, allowing you to customise functions for alarm, fire detection, access control, monitoring and more.

Scale your system effortlessly by connecting up to 30 EC-Z8 modules to a single EC control panel, expanding total input capacity to 248 zones.

The module includes two quick-connect keypad bus sockets and large plug-in terminals for straightforward installation.

It fits standard EC cabinets and EC-SCC mounting plates.

Built to last with a 5-year warranty.

Compact dimensions of 140 x 52 x 25mm make it ideal for space-constrained installations.

Optional battery backup power supply (EC-PSU2, 12V 1.4A) available for added reliability.
