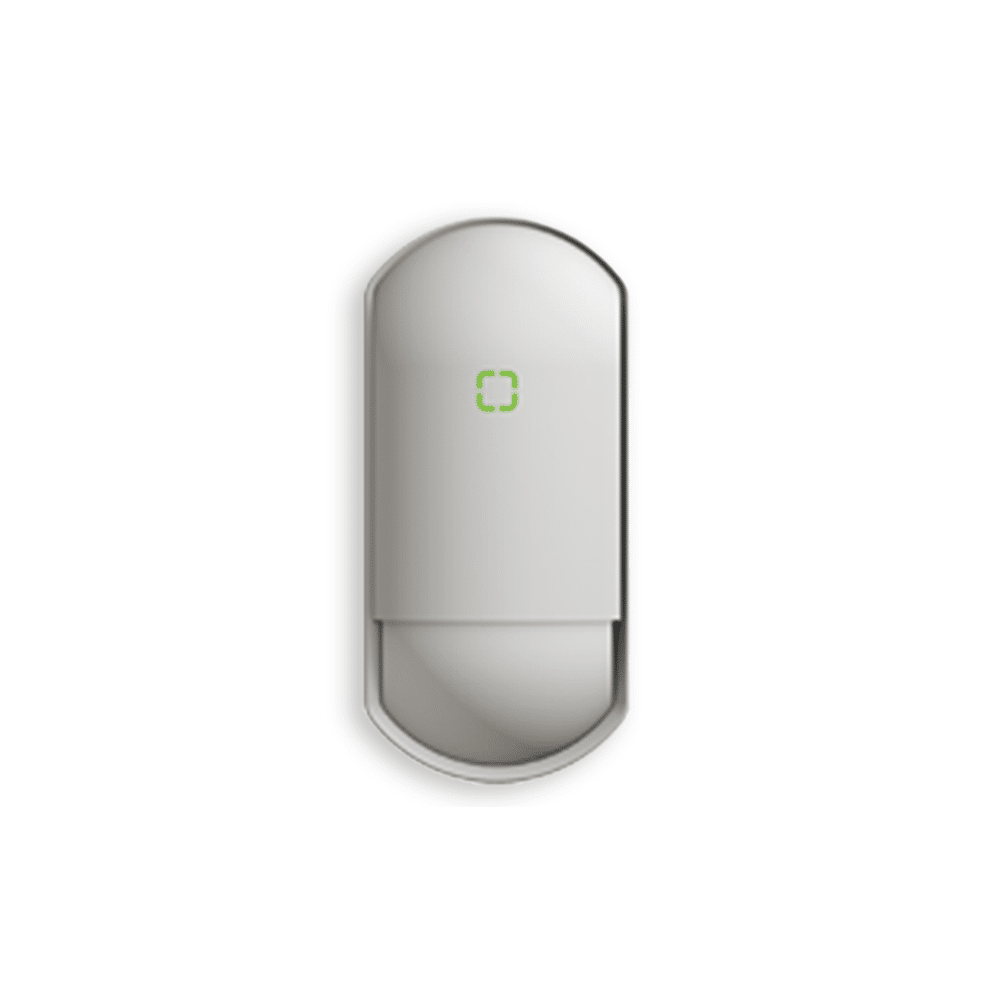

AAP OPT-FLX-S-ST PIR with Dual Lens
AAP OPT-FLX-S-ST PIR with Dual Lens
Part Number:
AAP390
SKU: AAP390
Brand:
AAP Arrowhead Alarm Products
Need help? Contact Us Now!
Trade pricing available via login.
View full details
The OPT-FLX-S-ST is a Passive Infrared Detector that is pet friendly with a selectable wide and narrow lens.
OPT-FLX-S-ST Features:
- Flip lens - selectable wide and narrow area with one lens. By turning the lens upside down, the shape of detection area can be changed from WIDE to NARROW.
- Pet friendly with optimised detection sensitivity
- Modern LED indicator for detection recognition
- Perfect for residential and small commercial applications
-
2 Year warranty
OPT-FLX-S-ST Specifications:
|
Mounting height |
2 - 3m (EN 2.0 – 2.4m) |
|
Coverage |
Wide: 12 I Narrow: 18m (reversible lens) |
|
Sensitivity |
1.6°C at 0.6m/s : 2.4m mounting height |
|
Alarm Period |
2.0 +/- 0.5s |
|
Warm-up period |
Approximate 60s (LED blinks) |
|
LED indicator |
Green: 1)Warm-up 2) Alarm |
|
Power input |
9.5 – 16V/DC |
|
Current draw |
12mA max @ 12V/DC |
|
Relay Output |
Alarm: N.C 24V DC 0.1A max. Tamper: N.C 24V DC 0.1A max (open when cover is removed) |
|
Operating Temperature |
-20°C - +50°C |
|
Temperature |
Digital |
|
Relative Humidity |
95% RD max |
|
Dimensions |
H130 x W62 x D56mm |
|
Weight |
120g |
