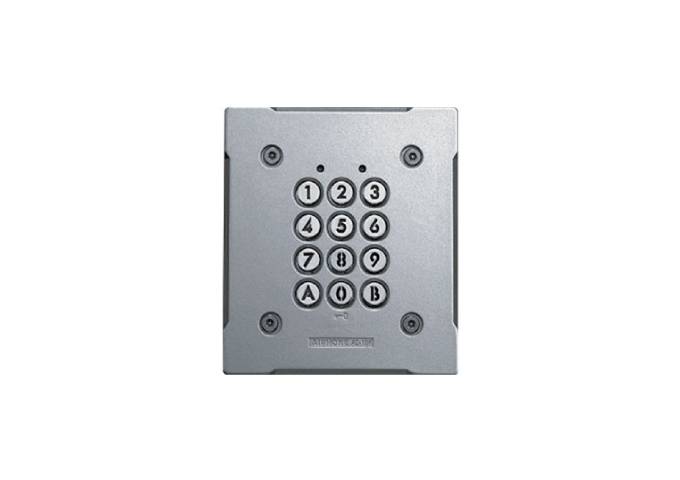

Aiphone AC10F Access Control Keypad, Flush Mount
Aiphone AC10F Access Control Keypad, Flush Mount
Aiphone AC10F Access Control Keypad, Flush Mount
Introducing the Aiphone Access Control Keypad, Flush Mount AC-10F€“ your key to enhanced security and convenience.
Designed and manufactured by Aiphone, a trusted name in cutting-edge security solutions, this sleek and versatile access control keypad is here to redefine the way you manage and secure your premises.
The AIP-AC-10F offers a seamless blend of advanced technology, durability, and user-friendliness. Whether you're safeguarding a residential building, a commercial property, or an industrial facility, this flush-mount keypad is tailor-made to meet your access control needs with precision.
Components:
Access Control Keypad, Flush Mount
Features:
- Access control with up to 100 unique user access codes
- Can be used as a stand-alone access control device
- Compact size in a stylized design
- 12-digit backlit keypad
Specifications:
- Output Rating: 2 Form C dry contacts, 24V AC/DC, 3A (resistive), 1A (inductive)
- Protection Rating: IP54
- Temperature Rating: -4° ~ 140°F (-20°~60°C)
- Material: Zinc die cast cover
- Mounting: Mounts directly to wall
Mounting
1. Detach the AC-10F panel using the special screwdriver supplied.
2. Attach the flush mount back box to the wall.
3. Attach the panel to the flush mount back box using the special screwdriver and the special screws for panel mounting.
