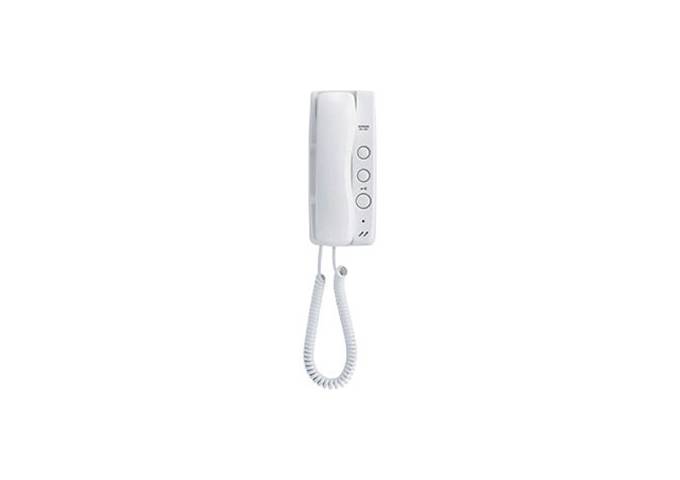

Aiphone DA-1MD, Audio Handset, DA Series Door Stations
Aiphone DA-1MD, Audio Handset, DA Series Door Stations
Aiphone DA-1MD, Audio Handset, DA Series Door Stations
Aiphone DA-1DM - PROVIDES ENTRY SECURITY FOR YOUR RESIDENCE
Simplified Two-Wire Door Entry Kit
Aiphone's DA series residential audio intercom provides audio communication from a door station to an internal handset station. Firstly, The DA Series features simple two-wire cabling, AC operation by inexpensive plug pack and AC door release operation. Secondly, The DA series is available either in boxed sets containing a single door station and room station or as individual components for 2 or 4 call door stations and individual handsets.
FEATURES (Aiphone DA-1MD):
Furthermore, also available are two button and 4 button door stations suitable for small apartment blocks. In addition, the DA Series features an optional second door release function and door stations available in grey and silver.
- Connect Electric Door Release with same two wires from door station. Moreover, requires no extra power supply for door release. An AC operated door strike is required.
- Existing doorbell or chime wires can be utilised (disconnect from the transformer).
- In essence, the master station is equipped with Door Release and one Function button to turn on the entrance light, etc.
- Optional call extension sounder.
SPECIFICATIONS:
- Communication: Handset (full-duplex)
- Wire Type: Entrance Station to Tenant Station: 2-cond., overall shield - use Aiphone #822202 or 2-cond., low cap, PE insulation, solid, non-shielded -use Aiphone #871802
Power Supply to Tenant Station: 2-cond., low cap, PE insulation, solid, non-shielded -use Aiphone #871802
- Distance: Power Supply to Tenant Station: 180'(22AWG) 510'(18AWG)
Entrance Station to Power Supply (cumulative): 360'(22AWG) 1,020'(18AWG)
- Power Source: AC 15V, supplied from Power Supply.
- Calling: Electronic tone (while the button is depressed).
- Communication: Simultaneous with handset.
- Weight
- DA-1MD: approximately 370 g.
- DA-1DS: approximately 270 g.
- Wiring: 2 wires, polarised from door to DA-1MD.
- Distance
- From door to master station (Wire Diameter: 0.6 mm / 0.8 mm / 1.0 mm): 110 m / 200 m / 310 m
- Master station to Power supply (Wire Diameter: 0.6 mm / 0.8 mm / 1.0 mm): 55 m / 100 m / 155 m
