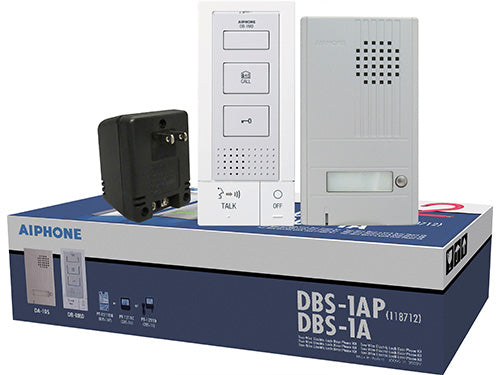

Aiphone, DBS1A Intercom KIT includes DB1MD handset and DA1AS door station
Silver Door Phone Kit with Open Voice Master Station. The DBS-1A is a convenient box set that comes with a tenant master station, a 1-call entrance station, and power supply.
Features:
- Call tone and volume control with mute indicator
- All Call button for internal communication
- Talk button, hands-free communication
- Can communicate between the 5 stations via the all call button
- Connects via 2 wires to DA series door station
- Requires one 16v AC power supplyto operate both the unit and electric strike
- Off button
Specifications:
- Communication: Hands-free (VOX) or push-to-talk (simplex)
- Door Release: 9.5~20V AC, 70Ω or higher resistance - use EL-12S
- Wire Type: Entrance Station to Tenant Master Station: 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802 Tenant Master Station to Tenant Sub Station: 4-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871804 Between Tenant Sub Stations: 4-cond. + 2-cond. when sharing power - use Aiphone #822206 or #871804 Power Supply to Tenant Station: 2-cond., low cap, PE insulation, solid, non-shielded - use Aiphone #871802
- Distance: Power Supply to Entrance Station or Door Strike (cumulative): 360'(22AWG) 1,020'(18AWG) Power Supply to Tenant Master Station: 180'(22AWG) 510'(18AWG)Tenant Master Station to farthest Tenant Sub Station: 330'
