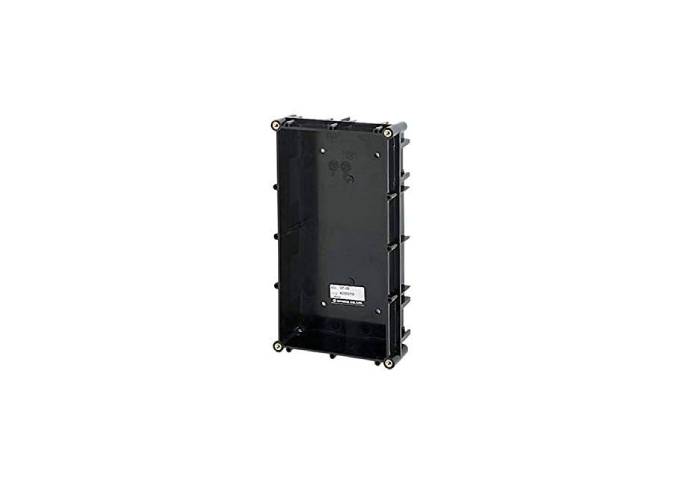

Aiphone GF-2B 2 Module Back Box
Aiphone GF-2B 2 Module Back Box
Aiphone GF-2B 2 Module Back Box
Description:
The GF-2B is a 2 module back-box from Aiphone first is significantly capable of providing high quality module protection and where it is used when installed within any application it is used for. The
GF-2B back-box is explicitly constructed with especially high quality material, and as a result offers a black colored exterior which enables for blending with the surrounding area. Moreover, the GF-2B back box also comes easy to setup and install, and offers an affordable price to help save money.
Furthermore, this system is constructed by using 2 wires for audio and 2 wires for video and requires minimal work for installation. In addition, a maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. Audio systems can also be configured altogether.
H200 x W110 x D44mm
- Requires GT2F
- H200mm x W110mm x D44mm
- Multiple Boxes can be mounted side by side
- 25mm gap between boxes
- Joining pipes supplied
Features
- Flush mount back box
- Power Supply: 24V DC - Use PS-2420UL (for GT-BC, GT-VBC, GT-NS, GT-MK, GT-BCX, and GT-2C)
- Current Consumption: GT-BC: 0.9 A, GT-VBC: 0.9 A, GT-NS: 0.13 A, GT-MK: 0.18 A, GT-BCX: 0.35 A,
- GT-2C: 0.26 A, GT-2H: 0.11 A
- Call Tone: There are three different types of call tones: from entrance station, security guard station, and doorbell
- Talk & Video Path: Secure single channel
- Communication: Hands-free, voice-actuated communication or push-to-talk communication
- Door Release: Connecting terminals: between ELM - ELC (N/O) and ELB - ELC (N/C) Specifications: less than 4A (resistance load), 24V AC/DC, dry closure contact
- Wiring: To Summarize, two conductor cables (Aiphone #872002 for audio and Aiphone #871802 for video)
- Type of Cables: Lastly, a pair of cable (solid wire - not stranded), polyethylene insulated, low cap, diameter 20AWG-18AWG
