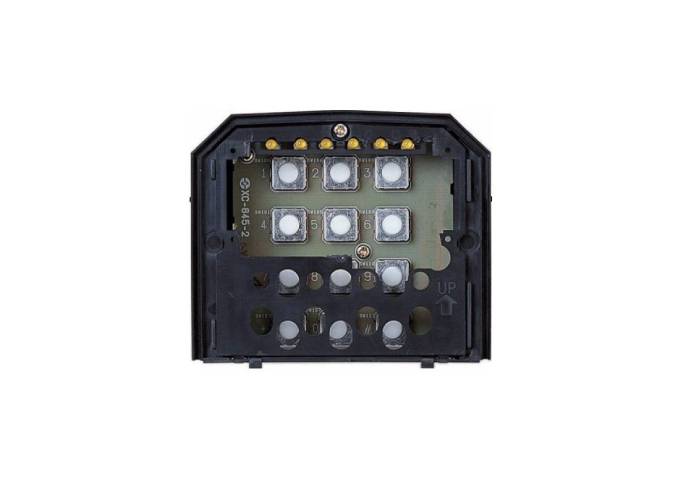

Aiphone GT-10K, Keypad Module
Aiphone GT-10K, Keypad Module
Part Number:
AUD009
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Aiphone GT Series 10 Key Digital Keypad Module
Features:
- 10-keypad module for use in conjunction with GT-NSB
Specifications:
- Power source: Supplied from GT-DB, GT-DB-V, or GT-DB-VN
- Protection Rating: IP43
- Mounting: Mounts using bracket supplied with GF-2F, GF-3F, or GT-4F
This system is constructed using 2 wires for audio and 2 wires for video and requires minimal work for installation.
A maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. Audio systems can also be confi gured.
For wiring from the control units to each residence/tenant, GT-4Z wiring method, loop wiring method, or GT-1Z wiring method is possible.
Mounting (Aiphone GT-10K Keypad Module):
- Firstly, for video entrance stations and video door stations, the picture quality of the residential/tenant station monitor is affected by the external light surrounding the built-in camera. Secondly, do not install these stations in the types of locations shown below.
- Locations exposed to direct sunlight
- Locations under street lights or door lights
- Other locations exposed to strong light
- Entrance stations (all-in-one type) include a sensor. Do not place objects such as plants or trees in places monitored by the sensor. Also, placing the unit in bright sunlit areas may prevent the sensor from working properly.
Residential/tenant station, sub residential/tenant station
- Firstly, do not install the station at a location exposed to direct sunlight.
- Secondly, avoid installing the station in a concave space of a wall to prevent audio distortion.
- Thirdly, do not embed the station inside a wall.
