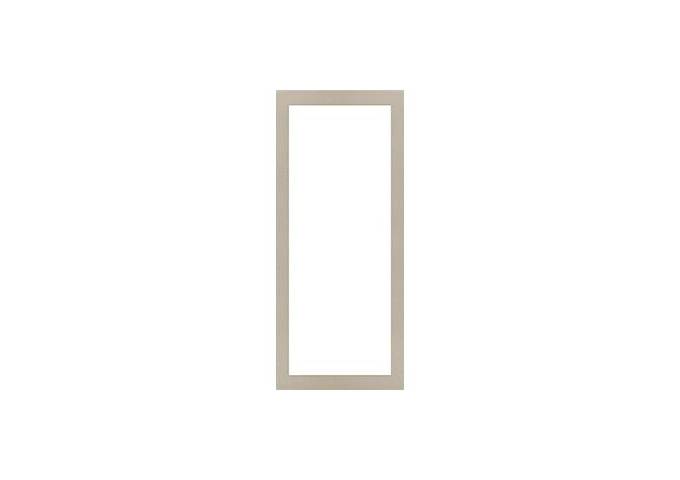

Aiphone GT-3F 3 Module Frame

Features:

• Vandal Resistant

Specifications: (Aiphone GT-3F 3 Module Frame)

• H335mm x W135mm x D12mm
• Cast Iron
• Zinc coated to assist protection from rust

This system is constructed using 2 wires for audio and 2 wires for video and requires minimal work for installation.

A maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. Audio systems can also be configured.

When the installation of the GT system has finished, configure the link settings among all the stations in the system before using the system by following the steps on the next page.

The GT system enables calling and communication among the linked stations only.

The setting method differs depending on the tool or device used.

Select the method suitable for the environment or setup plan of your system by referring to the link setting methods on the next page.

Furthermore, when the installation of the GT system has finished, configure the settings for the whole system before using it by following the steps below.

In summary, all settings can be completed by using the GT Setup Tool for Windows. You can also configure the settings on an entrance station and guard station. Moreover, the GT Setup Tool for Android is available to configure the settings for stations with NFC.
