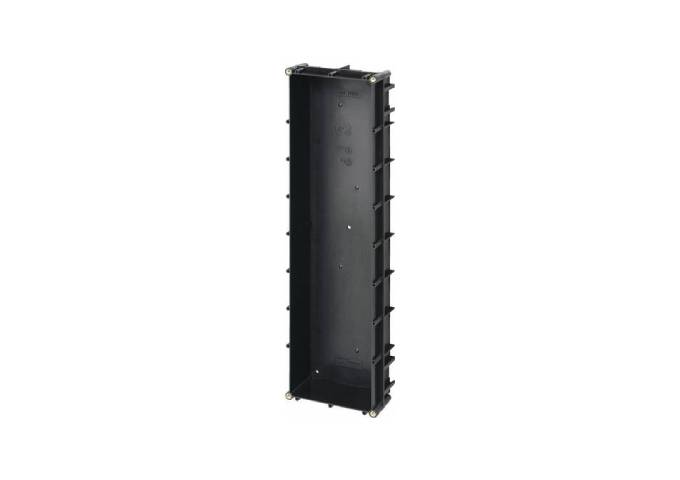

Aiphone GT- 4B 4 Module Back Box
Aiphone GT- 4B 4 Module Back Box
Aiphone GT- 4B 4 Module Back Box
Specifications (Aiphone GT-4B ):
H400 x W110 x D44mm
- Requires GT4F
- H400mm x W110mm x D44mm
- Multiple Boxes can be mounted side by side
- 25mm gap between boxes
- Joining pipes supplied
- Flush mount back box
Firstly, this system is constructed using 2 wires for audio and 2 wires for video and requires minimal work for installation.
Secondly, a maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. Furthermore, audio systems can also be configured.
Thirdly, for wiring from the control units to each residence/tenant, GT-4Z wiring method, loop wiring method, or GT-1Z wiring method is possible.
Mounting:
Firstly, For video entrance stations and video door stations, the picture quality of the residential/tenant station monitor is affected by the external light surrounding the built-in camera.
Moreover, do not install these stations in the types of locations shown below.
- Locations exposed to direct sunlight
- Locations under street lights or door lights
- Other locations exposed to strong light
- Entrance stations (all-in-one type) include a sensor. Do not place objects such as plants or trees in places monitored by the sensor. Also, placing the unit in bright sunlit areas may prevent the sensor from working properly.
