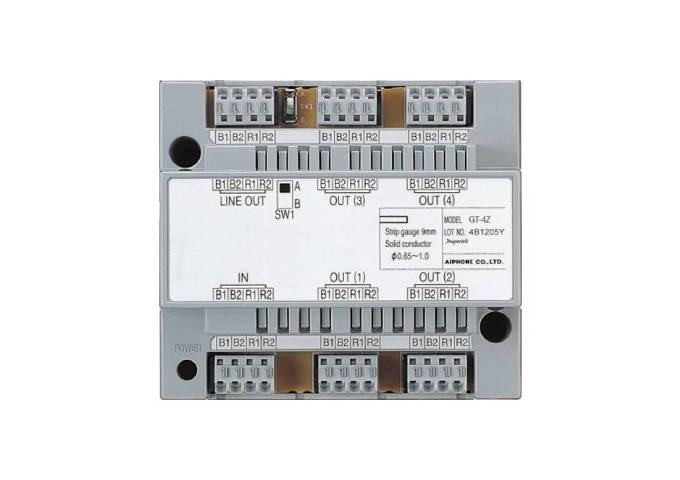

Aiphone GT-4Z, 4 Zone Video Divider Module
Aiphone GT-4Z, 4 Zone Video Divider Module
Aiphone GT-4Z, 4 Zone Video Divider Module
4 Zone Video Divider Module to split Video and Audio Bus to four apartments when used in the GT digital series intercom.
Features:
- Tenant station trunk line adaptor, up to 4 stations.
Specifications:
- Power Source
- DC 24V supplied from GT-VBC
This system is constructed using 2 wires for audio and 2 wires for video and requires minimal work for installation.
A maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. Moreover, audio systems can also be configured.
For wiring from the control units to each residence/tenant, GT-4Z wiring method, loop wiring method, or GT-1Z wiring method is possible.
Mounting:
Firstly, for video entrance stations and video door stations, the picture quality of the residential/tenant station monitor is affected by the external light surrounding the built-in camera. Secondly, do not install these stations in the types of locations shown below.
- Locations exposed to direct sunlight
- Locations under street lights or door lights
- Thirdly, other locations exposed to strong light
- Entrance stations (all-in-one type) include a sensor. In addition, do not place objects such as plants or trees in places monitored by the sensor. In summary, placing the unit in bright sunlit areas may prevent the sensor from working properly
