Aiphone GT-4ZP, Video 4-Zone Divider W/Power Source

Aiphone GT-4ZP, Video 4-Zone Divider W/Power Source

Part Number:
AUD030B
SKU:  AUD030B
Categories:  Aiphone, Aiphone GT Series
Brand:  Aiphone
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

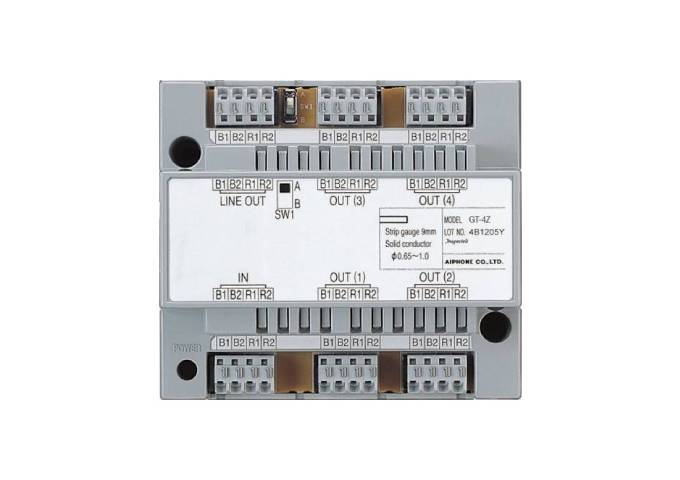

Aiphone GT-4ZP, Video 4-Zone Divider W/Power Source

The Aiphone GT-4ZP Video 4-Zone Divider with Power Source enhances multi-zone video intercom systems by efficiently managing up to four separate video channels. Designed for large residential complexes, offices, and commercial buildings, it ensures seamless video distribution across multiple areas.

With its integrated power source, the GT-4ZP simplifies installation and connectivity, reducing the need for additional wiring and components. It supports clear and uninterrupted video signals, ensuring smooth communication between the main entrance and different zones. Additionally, it integrates effortlessly with Aiphone’s GT Series, making it an excellent scalability solution for expanding intercom networks.

Built with durable materials, the unit ensures long-lasting performance in high-traffic environments. Its compact design allows for flexible mounting options, optimizing space efficiency. Whether used for residential security, business entry management, or institutional monitoring, the Aiphone GT-4ZP delivers high reliability, smooth video communication, and enhanced system organization for an improved intercom experience.


Features:

  • The GT-4ZP is an 4-Way Video & Power Distribution adaptor that allows one PS-2420UL to power up four GT-1C7W app-enabled tenant stations.
  • The GT-4ZP replaces existing GT-4Z adaptors in a standard GT system, and requires 1 PS-2420UL per GT-4ZP.
  • Each GT-4ZP includes 4 power jumpers (GTW-24J) that are to be installed on the GT-1C7W between the B1/B2 and +/- terminals, which provides power to the GT-1C7W without having to install a local PS-2420UL for each tenant station.

Specifications (Aiphone GT-4ZP):

  • Power: 24V DC (One PS-2420UL per GT-4ZP)
  • Mounting: W-DIN11 (not included)
  • Contents: 1x GT-4ZP, 4x GTW-24J
  • Dimensions: 4-1/4†H x 4-13/16†W x 2-3/8†D
  • Temperature: 32-104° F (0-40° C)

Power: 24V DC (One PS-2420UL per GT-4ZP)

Mounting: W-DIN11 (not included)

Contents: 1x GT-4ZP, 4x GTW-24J

Dimensions: 4-1/4 H x 4-13/16 W x 2-3/8 D

Temperature: 32-104° F (0-40° C)
