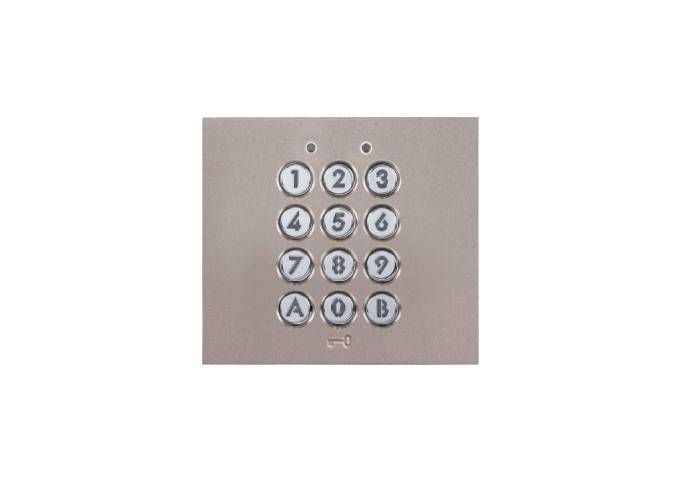

Aiphone GT-AC Access Control Keypad
Aiphone GT-AC Access Control Keypad
Part Number:
AUD018
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Aiphone GT-AC Access Control Keypad
Access Control Keypad Module
Features:
- Save up to 100 access codes
- Provides a N/O or N/C contact for door release.
- Request to Exit input
Specifications:
- Power Source: AC12~24V or DC12~24V
- Protection Rating: IP43
- Relay Contact: N.O. or N.C.
- Relay Contact Capacity: DC24V, 3A or less (resistance load), 1A or less (induction load)
AC24V, 3A or less (resistance load), 1A or less (induction load)
Mounting (Aiphone GT-AC Access Control):
1. Fix the mounting bracket to the back (or surface-mount) box.
2. Connect the wires to the unit.
3. Mount GT-AC to the front frame.
- Mount GT-AC from behind the front frame.
- Insert the notch into the slots on both sides.
Options a.Rain hood b.Hooded surface-mount box c.Surface-mount box * For details on mounting panels and modules other than the GT-AC, refer to the GF, GH or GT Installation and Operation Manual.
Technical Precautions:
Operating temperature: Between -10°C and 60°C (14˚F to 140˚F)
- Cleaning: Clean the unit with a soft cloth dampened with a neutral household cleanser. Do not use any abrasive cleanser or cloths.
- The unit is weather resistant. However do not spray high pressure water on access control keypad directly. Excessive moisture may cause problems with the unit.
- Press and release the , , , and keys simultaneously when this unit does not work.
