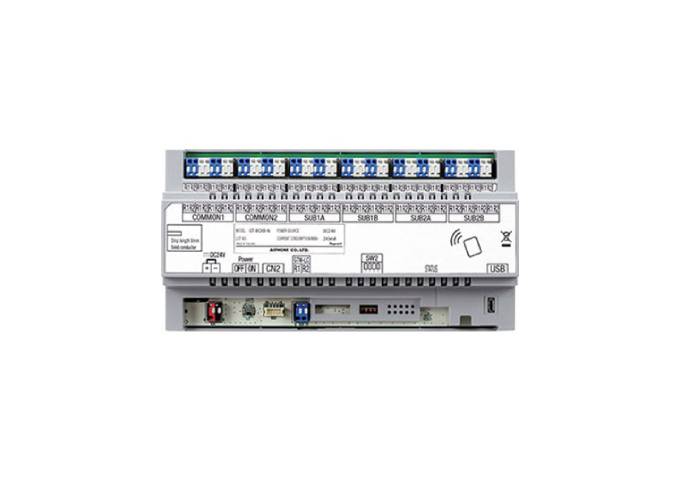

Expanded Bus Control Unit
Features:
- Distributes power and data to GT Series stations for expanded systems
- Consumption: Max. 0.9A
- Mounting: Wall mounted with supplied din rail
- Wire Type: 2-cond., solid, non shielded, PE insulation - use Aiphone #872002
System Configurations:
Firstly, This system is constructed using 2 wires for audio and 2 wires for video and requires minimal work for installation.
Secondly, a maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. Audio systems can also be configured.
Thirdly, for wiring from the control units to each residence/tenant, GT-4Z wiring method, loop wiring method, or GT-1Z wiring method is possible.
Mounting:
In summary, for video entrance stations and video door stations, the picture quality of the residential/tenant station monitor is affected by the external light surrounding the built-in camera. Furthermore, do not install these stations in the types of locations shown below.
- Locations exposed to direct sunlight
- Locations under street lights or door lights
- Other locations exposed to strong light
- Entrance stations (all-in-one type) include a sensor. Do not place objects such as plants or trees in places monitored by the sensor. Also, placing the unit in bright sunlit areas may prevent the sensor from working properly
