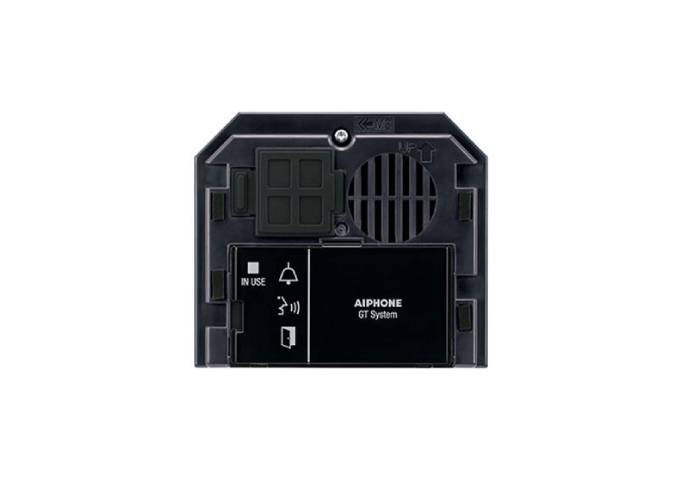

Aiphone GT-DB Audio Module

Aiphone GT-DB Audio Module

Audio Module for GT Modular Entrance Panel

Aiphone GT-DB Audio Module, this is an example of a custom modular 4-call video entrance station for the GT Series multi-tenant video intercom system. In addition, a custom entrance station can be designed to have audio, video, and the exact number of call buttons needed for the building.

Firstly, additional access control modules can also be added to allow tenant entry into the building. Each piece is ordered separately and assembled on site. Furthermore a built-in user guide on the audio module can be configured to display one of six languages.

Secondly, the guide provides operational assistance by displaying a visual icon, along with the option for audible instruction. Moreover the entrance station works on a common bus wiring system, carrying the calling and communication functions on 2-conductor wire, and the video signal (if equipped) on a second 2-conductor wire.

Lastly, power for the audio and video is supplied on the common bus wires. The entrance station is designed to be semi‑flush mounted. Furthermore, for added weather resistance, there is an optional rain hood and a hooded surface mount box available. Use the surface mount box if surface mounting is required

Features:

• Audio communication and door release module for GT modular entrance panel
• Form C contact with timer for door release
