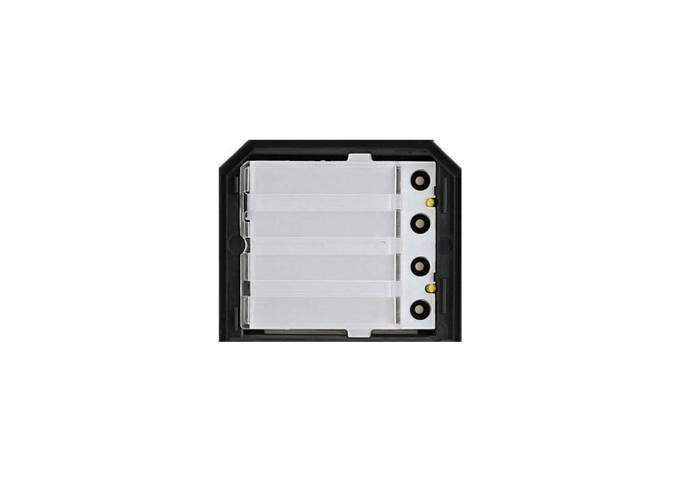

Aiphone GT-SW Switch Module
Aiphone GT-SW Switch Module
4-Call Switch Module for GT Series Modular Entrance Stations
Features:
- Call button switch module for up to 4 buttons
- Used with GF-1P, GF-2P, GF-3P, and GF-4P panels
Specifications:
- Protection Rating: IP43
- Mounting: Mounts on GT-4F, GF-3F, GF-2F
Firstly, this system is constructed using 2 wires for audio and 2 wires for video and requires minimal work for installation. Secondly, a maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. In addition, audio systems can also be configured.
In summary, for wiring from the control units to each residence/tenant, GT-4Z wiring method, loop wiring method, or GT-1Z wiring method is possible.
Mounting:
Firstly, for video entrance stations and video door stations, the picture quality of the residential/tenant station monitor is affected by the external light surrounding the built-in camera. Secondly, do not install these stations in the types of locations shown below.
- Locations exposed to direct sunlight
- Locations under street lights or door lights
- Other locations exposed to strong light
- Entrance stations (all-in-one type) include a sensor.
- Do not place objects such as plants or trees in places monitored by the sensor. Also, placing the unit in bright sunlit areas may prevent the sensor from working properly.
