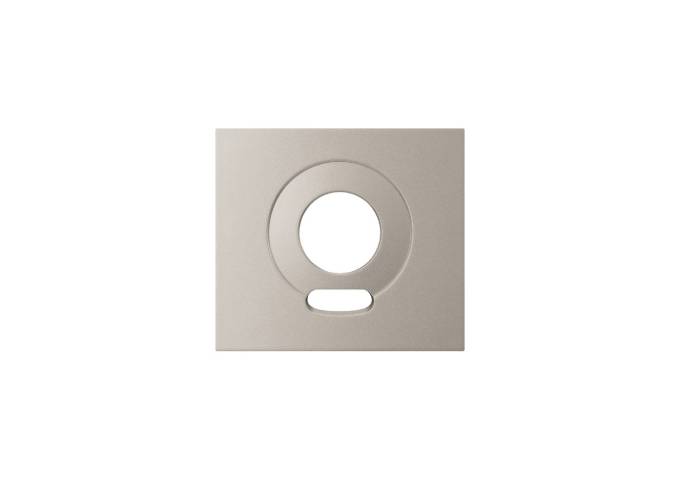

Aiphone GT-VP, Video Module Plate
Aiphone GT-VP, Video Module Plate
Aiphone GT-VP, Video Module Plate
Front panel to suit the Aiphone GTVA camera module.
Features:
- Vandal Resistant
Specifications:
- Mounting: Mounts in GF-2F, GF-3F or GT-4F. 2, 3 or 4 module front frame.
- Material: Zinc die cast
Firstly, this system is constructed using 2 wires for audio and 2 wires for video and requires minimal work for installation.
Secondly, a maximum of 6 video trunk lines can be used from the video bus controller and audio signal lines use a distribution point from the bus controller. In addition, a audio systems can also be configured.
Thirdly, for wiring from the control units to each residence/tenant, GT-4Z wiring method, loop wiring method, or GT-1Z wiring method is possible.
Mounting (Aiphone GT-VP):
Firstly, for video entrance stations and video door stations, the picture quality of the residential/tenant station monitor is affected by the external light surrounding the built-in camera. Do not install these stations in the types of locations shown below.
- Locations exposed to direct sunlight
- Locations under street lights or door lights
- Other locations exposed to strong light
- Entrance stations (all-in-one type) include a sensor. Moreover, do not place objects such as plants or trees in places monitored by the sensor. Furthermore, placing the unit in bright sunlit areas may prevent the sensor from working properly
