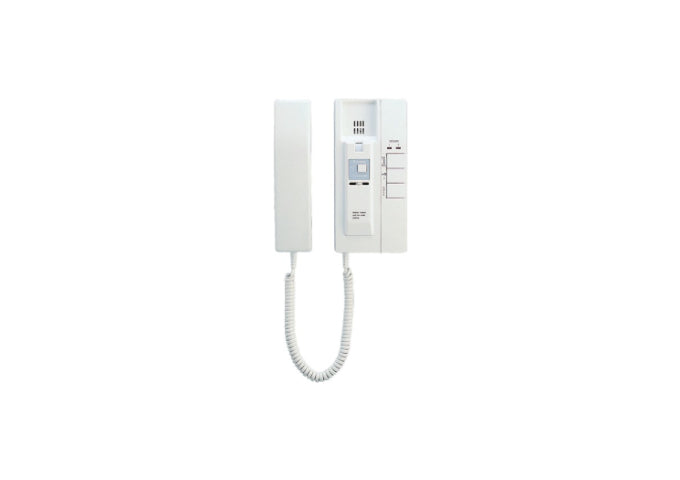

Aiphone IE2A2DU 2 Door Chime Handset Intercom

Aiphone IE2A2DU 2 Door Chime Handset Intercom

• The Aiphone IE series handset intercom is suitable for home and business use. There are five different models of handsets master stations to suit different applications
• The IE-2A2DU audio handset master station which enables two-door stations to be connected and a total of three handset stations to be installed.
• Internal communication between handset stations is possible and all handset can communicate with the door station.
• Has two-door release buttons



Features (Aiphone IE2A2DU):

• Two and Four tones electronic chime
• Chime volume adjustment on handsets
• Answer the door from any room station
• All Call internal calling between handsets
• 2 Door release buttons (additional hardware required)
• AC or DC power source ( 12-16V AC or 12-24V DC )
• Wiring: 2 non-polarized to a door station, plus 2 to each door release. and 8 wires in loop between rooms
• Optional chime extension
• Can be used with IE or IF door stations
• Size: 100 x 210 x 61mm (WHD)

Specifications:
