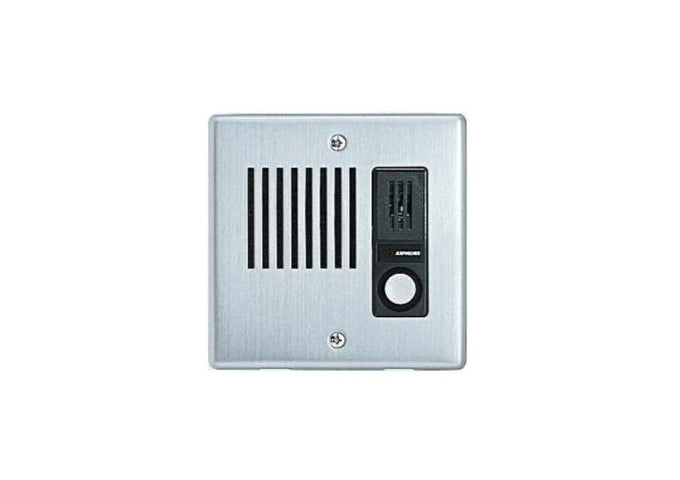

Aiphone IEJA Audio Only Flush Mount Door Station

• Flush Mount Door Station with stainless steel cover, includes mounting hardware.(Aiphone IEJA)

Features:

• Slim, flush-mount design with stainless steel cover
• Mounts to 2-gang box or ring
• Locator LED above the call button
• Hands-free communication at door station, controlled by a master station

Specifications:

• Communication:Hands-free
• Temp. Rating:14°~140°F (-10°~60°C)
• Material:ABS plastic with stainless steel cover
• Mounting:Flush mount with 2-gang box/ring
• Wire Type:2-cond., overall shield - use Aiphone #822202 or #821802
• Dimensions (WxHxD):116 x 115 x 40mm

Operations:

Momentarily press CALL button, which activates a (chime) tone at room station(s). To reply, pick up headset. Communication to door is automatically connected. On TD-H/B, select the designated channel to answer. On TC-M, depress the station button with the lit LED to answer.

Technical Precautions (Aiphone IEJA):

• Door station is weather-resistant, but do not spray high pressure water. Unit trouble could result.


• If possible, it is recommended that the unit be installed under a a cover not exposed to direct rain.


• Do not apply caulking seats around the door station. Unit trouble could result, if the rain-escape opening would be sealed in bottom.


• Do not run audio wires in the same cable conduit with any AC wiring, including door strike wires.


• Terminate wires on two terminals, securing insulation to protect against weathering.
• Clean. Clean IE/1F door station with a soft cloth dampened with neutral household cleaner. Never use any abrasive cleaner or cloth.
