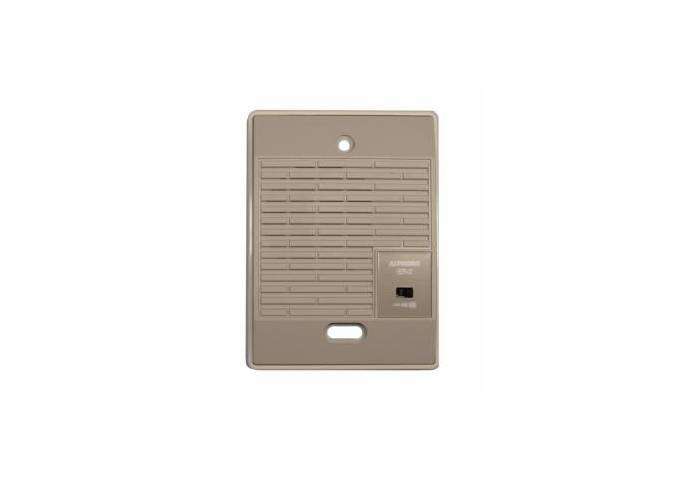

Aiphone IER2 Call Chime Extension
- The IER2 is a call extension speaker unit for use with IE1ADU and IC, IE series.
- The IER-2 is a call extension speaker for hearing a chime tone in a location remote from the master or sub station. The chime is the same from the IER-2 as is emitted from the intercom, and it is equipped with a 3-position volume switch. There is no reply from the IER-2.
Features:
- Announces a call from sub (or door) station in a place remote from master (or room) station
- One call extension per system
- Tone volume switch
- Reply from IER2 not avail.
- Mounting Hardware
- Size: 88 x 120 x 29mm (WHD)
Specifications:
- Unit housing: Plastic .
- Wiring: 2 wires, non-polarized to an inside station (master or sub).
- Dimensions:120H x 88W x 29D (mm). 4-3/4"H x 3-1/2"W x 1-1/8"D.
- Weight: 150g (0.33 lbs.).
Mounting:
1. Connect a pair of wires to screw terminals on back.
2. Attach IER-2 unit to wall or single-gang box with supplied screws.
3. For surface-wall mounting, run the cable either from top or bottom of the unit.
Technical Specifications (Aiphone IER2):
Cleaning
Clean IER-2 unit with a soft cloth dampened with neutral household cleanser. Never use any abrasive cleaner or cloth.
Mounting Location
IER-2 is not a weather-resistant type. Do not install outdoors.
