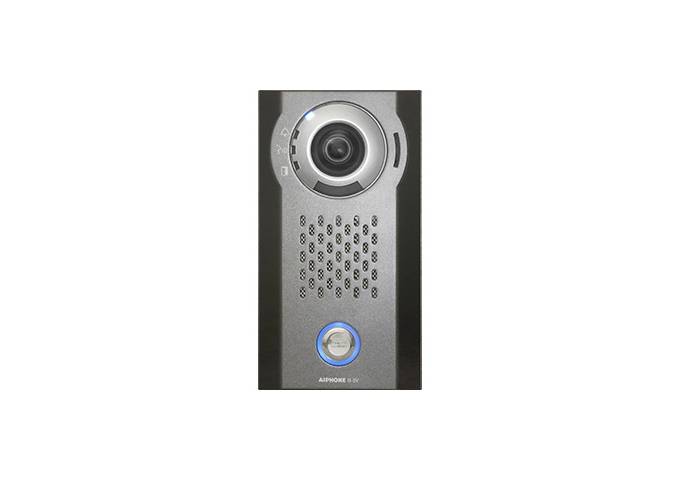

Aiphone IX-DV, Vandal Resistant Colour Video Door Station, Surface Mount
Aiphone IX-DV, Vandal Resistant Colour Video Door Station, Surface Mount
Part Number:
AIP951
Need help? Contact Us Now!
Trade pricing available via login.
Need a product not listed online? Contact our team and we’ll source it for you.
View full details
Aiphone IX-DV, Vandal Resistant Colour Video Door Station, Surface Mount
Components:
- SIP Compatible Surface Mounted IP Video Door Station
- Vandal Resistant Aluminum Die Cast Cover
Features:
- Use SIP to integrate with Cisco Unified Call Manager® and answer calls off-site
- ONVIF® Profile S Compliant
- 802.3af PoE with PoE pass through (802.3at Type 2 PoE+)
- 1.23 megapixel fixed color video camera
- Camera vertical adjustment +15º, 0º, or -8º (manual)
- White LED for low light illumination
- Capture and store the audio and video of active conversations on a microSD™ card (not provided by Aiphone)
- Weather and vandal resistant
- Stainless steel faceplate
- 2 contact outputs (door release, external signaling)
- 6 trigger inputs
- 2-year warranty!
Specifications (Aiphone IX-DV):
- Power Source: PoE (IEEE 802.3af class 0)
- Power Draw: 5.28 Watts
- Camera:…“" CMOS 1.23 megapixel
- Min. illumination: 5 lux
- Audio Codec: G.711 (μ-law, A law), G.722
- Video Codec: H.264/AVC, motion JPEG
- Protocols: IPv4, IPv6, TCP, UDP, SIP, HTTP, HTTPS, RTSP, RTP, RTCP, IGMP, MLD, SMTP, FTP, DHCP, NTP, DNS
- Port Security: IEEE 802.1X
- Operating Temp: -40° - 140°F (-40° - 60°C)
- Protection: IP54, IK08
- Dimensions: 8-1⁄16" H x 4-½" W x 2-1⁄16" D
- Mounting:Surface mounted with included bracket.
Notice:
- If the station is used in areas where there are business-use wireless devices such as a transceiver or mobile phones, it may cause malfunction.
- If the device is installed close to a light dimmer, an inverter electrical appliance or the remote control unit of a hot-water system or floor-heating system, it may create interference and cause a malfunction.
- Furthermore, if the device is installed in an area with an extremely strong electrical field, such as in the vicinity of a broadcasting station, it may create interference and cause a malfunction.
- If warm air from inside the room enters the unit, the internal and external temperature difference may cause condensation on the camera.
