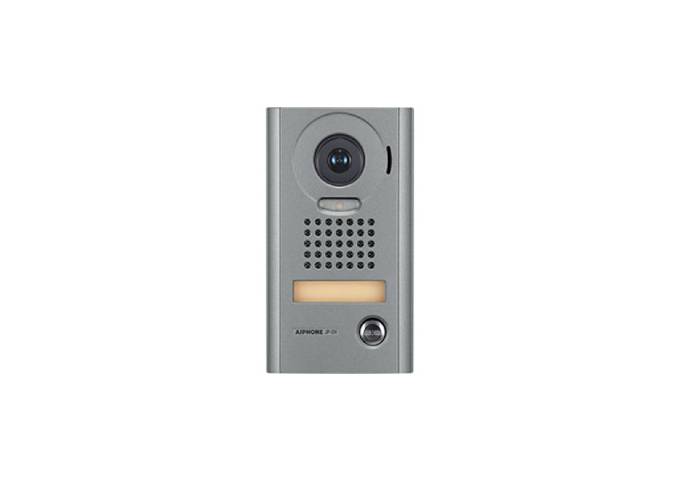

Aiphone JP-DV Video Door Station,Surface Mount Zinc Die Cast Cover

AiphoneJP-DV, Video Door Station, Surface Mount Zinc Die Cast Cover

The JP-DA is a surface mount plastic video door station. The JP-DV is an aluminum die cast surface mount video door station. The JP-DVF is a stainless steel flush mount video door station.

All of these units work with the JP Series and connect to the master station using an 18AWG 2-conductor solid core cable. Each unit includes a camera, microphone, speaker, and call button. Tamper resistant screws are provided for mounting the JP-DV and JP-DVF stations.

When the call button on the door station is pushed, the inside master station(s) ring and the video screen displays the image from the door station’s camera. The master station initiates communication, and the person at the door station speaks hands-free.

The JP door stations can be located up to 330’ from the master monitor using 18AWG 2 conductor solid core cable (Aiphone wire #871802). Additional equipment is available to extend the wire distance up to 980’ to the door (JPW-BA long distance adaptor).

Features:

• Wide angle camera allows user to view up to 170° of the entry area
• Digital Pan, Tilt and Zoom control from Master Station
• LED illumination automatically turns on in low light conditions
• Simple 2-conductor wiring
• Mounts directly to wall or 1-gang box with MKW-P mounting plate
• Housed in an aluminum diecast
• Weather resistant
