Aiphone JVS-1F.MO, Video Intercom Kit, 7" Screen, Handsfree, 1 to 1 Colour Video, Flush Mount Entry, No APP. (JV-1MD, JV-DVF, PS-2420)

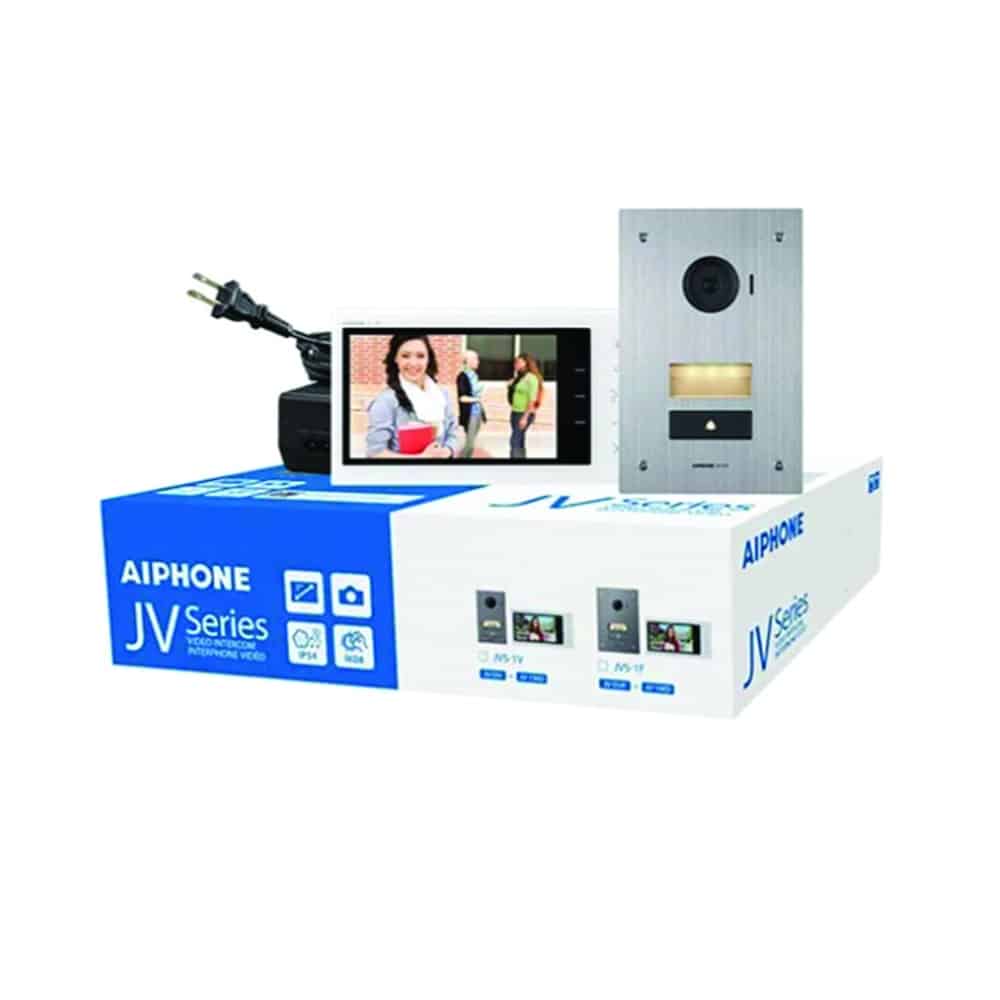

The JVS-1F box set includes the JV-DVF, JV-1MD (not sold separately), and a PS-2420UL power supply.
The JVS-1F is a convenient system that comes complete with master station, door station, and power supply. Add the optional JV-1FD, a video expansion master station, to create a 1x2 system.
Features:
JV-DVF Door Station
- Fixed camera provides clear video
- Weather and vandal resistant
- Durable stainless steel
- Flush mount with back box (included), or surface mount with SBX-DVF
- LED illumination automatically turns on in low light conditions
- Backlit call button and nameplate
JV-1MD Video Master Station
- Video identification and monitoring
- Slim design
- Hands-free communication or push-to-talk
Specifications (Aiphone JVS-1F.MO):
Power Source
24V DC—use PS-2420UL
Communication
Hands-Free (VOX) or push-to-talk (simplex)
Door Release
Master/Expansion Station and Door Station Output: N/O dry contact
Second Door Station Output: N/O wet contact, 500 mA or less, 12V DC
Door Station Input: request to exit, N/O dry contact
Wire Type
Door Station to Master Station: 2-Cond., mid cap, solid, non-shielded€” use Aiphone #871802
Door Station to Expansion Station: 2-cond., mid cap, solid, non-shielded€” use Aiphone #871802
Expansion Station to Master Station: 4-cond., mid cap, solid, non-shielded€” use Aiphone #871804
Expansion Station to Master Station (with door release): 6-cond., mid cap, solid, non-shielded€” use Aiphone #871802
Distance
Door Station to Master Station: 165' (22AWG) 330' (18 AWG)
Door Station to Expansion Station: : 165' (22AWG) 330' (18 AWG)
Expansion Station to Master Station: : 165' (22AWG) 330' (18 AWG)
Power Supply to Master Station: 16' (22AWG) 33' (18 AWG)
