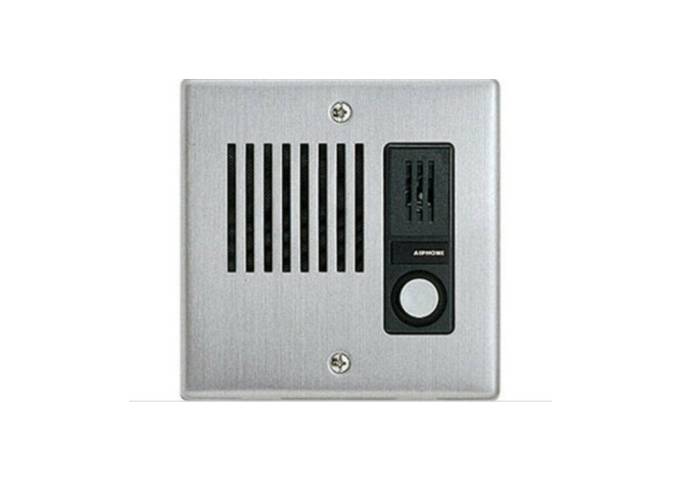

Aiphone LEDA Flush Mount Outdoor Station
Aiphone LEDA Flush Mount Outdoor Station
Part Number:
INT650
SKU: INT650
Brand:
Aiphone
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Aiphone LEDA Flush Mount Outdoor Station
Flush Steel Audio Door Station
Aiphone Intercom LE-DA Flush Mount Audio Door Station, Stainless Steel Cover Audio only, selective calling, open voice system.
LE-DA are door stations designed to work with Aiphone LEF intercom System Models: LEF-3, LEF-5/5W, LEF-10/10W, LEF-10S/10SW;LEF-3B, LEF-5B & LEF-10SB.
Weather-resistant for outdoor use fits 2-gang box. Push button to call master station(s).
- CUT OUT DIMENSIONS - 30D x 86W x 66H
- Front panel 115mm x 116mm x 2mm
- Embedding box 86mm ( w) x 66mm (h) x 34mm(d)
Features:
- Provides communication and call-in
- Stainless steel cover
- Weather and vandal resistant
- Hands-free communication when master station answers
Specifications (Aiphone LEDA Flush Mount):
- Type of communication: Hands-free communication
- Mounting: Mounts flush in a 2-gang back box or directly on wall with SBX-2G/A
- Wire Type: 3-cond., overall shield - use Aiphone #822203(22AWG) or #821803(18AWG)
- Wire Distance: Door Station to farthest Master Station: 650'(22AWG) 1,600(18AWG)
- Protection Rating: IP33
- Temperature Rating: 14° ~ 140°F (-10°~60°C)
- Dimensions: 4-1/2" H x 4-9/16" W x 2" D
Technical Details:
| Brand | Aiphone |
|---|---|
| Manufacturer | AIPHONE |
| Model | LE-DA |
| Part Number | LE-DA |
| Light Source Type | LED |
| Material Type | Stainless Steel |
| Mounting type | Flush |
| Item Weight | 240 g |
| Manufacturer | AIPHONE |
| ASIN | B0064S9RFQ |
| Item Model Number | LE-DA |
| Date First Available | 17 March 2014 |
Common Specifications, plus: LE-DA Specifications:
Material: Plastic case, stainless steel faceplate Dimensions: 4-1/2†x 4-9/16†x 1-9/16â€
