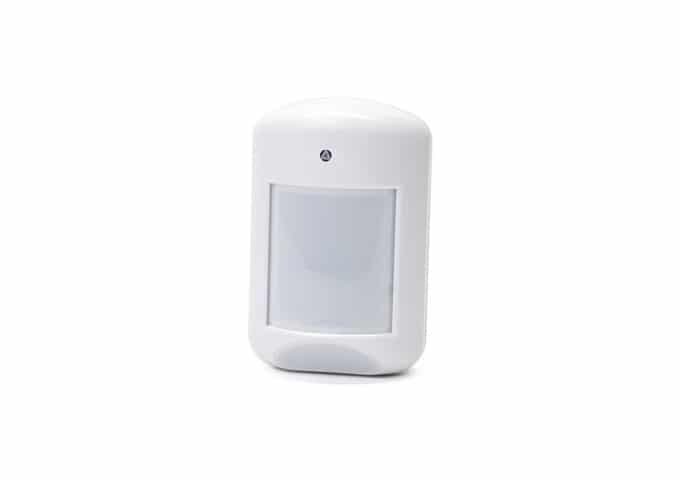

Aleph AL-40 Passive Infrared Detector (PIR)
The Aleph AL-40 Passive Infrared Detector (PIR) effectively detects movement by sensing infrared radiation from objects in its field of view. It is designed for use in security systems, providing reliable motion detection in various environments. The AL-40 offers precise and accurate detection, minimizing false alarms while maintaining high performance. Additionally, its compact design allows for easy installation, and it integrates seamlessly into existing security setups. Ideal for both residential and commercial use, the Aleph AL-40 ensures enhanced security by alerting users to movement within its detection range, providing a reliable security solution.
Features
- Sold 1 EA or 100 EA in Case
- QMA - Qualified Motion Analysis
- Rock Solid RFI immunity
- Dual slope Temperature Compensation
- 60 lb. Pet Immunity
- Optional 100 lb. Animal Immunity Lens Included
- Multi-function LED
- Ambient Temperature Detection,
- Self-dimming LED
- Tamper Switch
- Detection Area 40' x 40' (12m)
- Color:
- UPC: 6938942620403 (White) P/N: AL-40
Specifications:
| Specifications | AL-40 |
|---|---|
| Type | QMA - Qualified Motion Analysis |
| Input Voltage | 10.6 to 16VDC |
| Input Current | 15 mA maximum, 10 mA quiescent (approx.) |
| Pyro Type | Dual element |
| Pulse Count | 2/4 pulses (selectable) |
| Warm Up Period | 50 secs. max. |
| Alarm Period | 2.4 secs, retriggerable |
| Visual Indicator | Red Alarm LED (selectable on /off ) |
| Alarm Output | NC dsolid state, 19 VDC, 100 mA, 13 ohms resistance typ. |
| Tamper Output | NC, dry contact, 30 VDC, 500 mA, 5 W max. |
| Mounting Height | 6.5 to 8.5 ft. (2 to 2.6m) |
| OperatingTemperature | +14° F to +131° F; Humidity: 95% max. |
| Dimensions | 3.9" (98mm) L; 2.5" (64mm) W; 1.7" (42mm) H |
| Weight | 3.0 oz. (83.5g) |
