Aleph, BR-1021-White 3/4" Diameter

Aleph, BR-1021-White 3/4" Diameter

Part Number:
SEN220
SKU:  SEN220
Categories:  Alarms Systems, Aleph, Magnetic Reed Switches
Brand:  Aleph
Need help? Contact Us Now!
+61 3 9596 6688 sales@mainline.com.au
Trade pricing available via login.
View full details

Aleph, BR-1021 White 3/4" Diameter

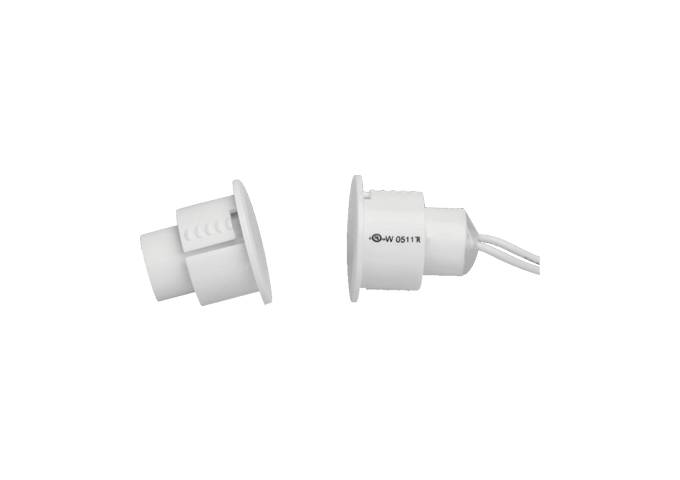

The Aleph BR-1021-White 3/4" Diameter Recessed Contact is a versatile and reliable solution for security systems. With a 3/4" diameter and compact design, it offers easy installation and discreet integration into doors, windows, and other access points. The recessed configuration allows the contact to remain unobtrusive while delivering effective security.

The contact features a closed-circuit (C/C) design, ensuring accurate detection when the magnetic field is disrupted. This setup minimizes false alarms and enhances the reliability of security systems.

Built for durability, the BR-1021-White performs consistently over time, even in demanding environments such as residential, commercial, or industrial settings. Its compatibility with various security systems ensures seamless integration. By combining durability, reliable performance, and discreet installation, it provides an excellent choice for enhancing security and monitoring entry points.

Features:

  • 3/4" Recessed mounted magnetic contact switch
  • For steel door or wooden door
  • Available in a closed loop, open loop and SPDT
  • Standard 18-inch leads or terminals
  • Size: 3/4-inch diameter
  • Standard gap up to 1/2-inch on steel or 1.5-inch on wood
  • 7.5W and 100V DC/0.4A for closed loop
  • N/C Closed loop contacts

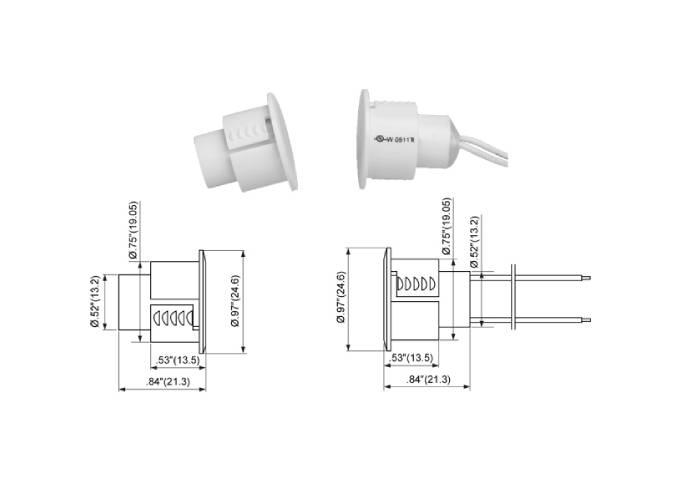

Specifications of Aleph BR-1021:

  • .75″×.84″(19.05mm×21.3mm)
  • Standard Magnet Size: .75″×.84″(19.05mm×21.3mm)
  • Standard Gap: 1.1″(28mm)
  • Colours: White, Brown
  • 12″(305mm) 22 AWG Leads Standard
  • Longer leads available
