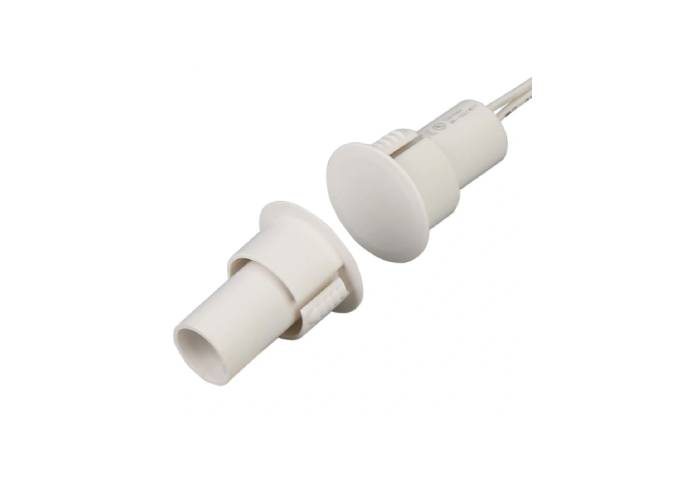

The Aleph BR-1021C-White 3/4" Diameter Recessed Contact provides a dependable and compact solution for security systems. Its recessed design ensures a discreet installation, seamlessly blending into doors, windows, or other access points while maintaining full functionality.

Featuring a closed/open (C/O) circuit configuration, it enhances versatility and ensures accurate detection when the magnetic field is interrupted. This setup minimizes false alarms and improves overall system reliability.

Built with durability in mind, the BR-1021C-White delivers consistent performance in residential, commercial, or industrial environments. Its compatibility with various security systems simplifies integration, making it an excellent choice for enhancing security and monitoring entry points effectively.

Features:

• 3/4" Diameter Recessed mounted magnetic switch
• For either a steel door or wooden door
• Standard 18-inch leads wire leads
• Size: 3/4-inch diameter
• Standard gap up to 1/2-inch on steel or 1.5-inch on wood
• 7.5W and 100V DC/0.4A for closed loop
• Change over the loop, SPDT contacts
• Colours, White or Brown

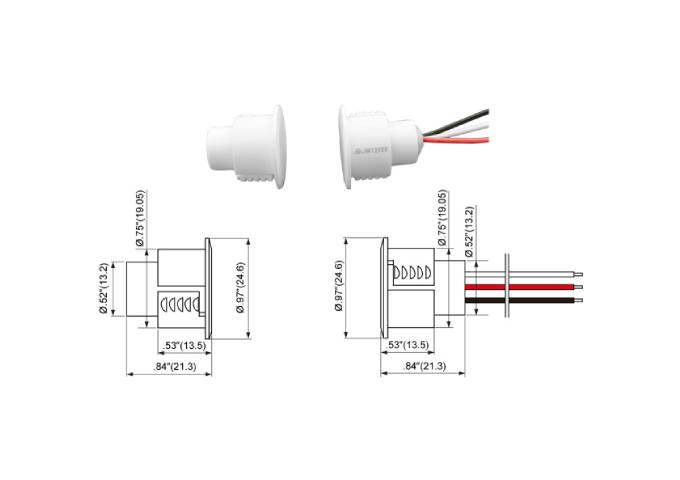

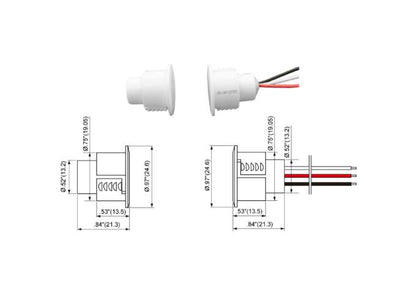

Specification of Aleph BR-1021C:

• .75″×.84″(19.05mm×21.3mm)
• Standard Magnet Size: .75″×.84″(19.05mm×21.3mm)
• Standard Gap: 1.1″(28mm)
• Colours: White, Brown
• 12″(305mm) 22 AWG Leads Standard
• Longer leads available.
