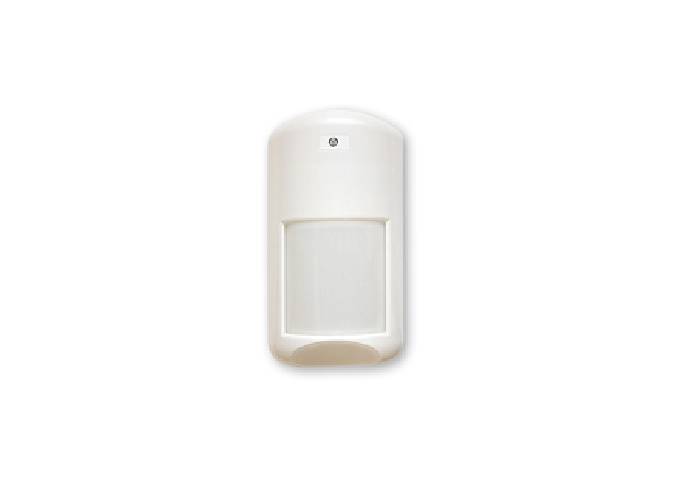

Aleph, QT-40, Passive Infrared Detector (PIR)
Aleph, QT-40, Passive Infrared Detector (PIR)
Part Number:
ALE012
Need help? Contact Us Now!
Trade pricing available via login.
View full details
Aleph QT-40 Passive Infrared Detector (PIR)
The Aleph QT-40 Passive Infrared Detector (PIR) provides reliable motion detection by sensing infrared radiation emitted by objects in its range. It offers precise and accurate monitoring, reducing false alarms and enhancing security system performance. With its compact design, the QT-40 ensures easy installation and seamless integration into various security setups. Ideal for residential and commercial environments, it delivers consistent performance, effectively detecting unauthorized movement. The QT-40's advanced technology ensures dependable operation, making it a trusted choice for safeguarding properties while maintaining ease of use and flexibility for diverse security needs.
Features of Aleph QT-40
- Quad Tech - Combination Microwave PIR
- Rock Solid RFI Immunity
- Indoor Motion Detector
- QMA - Qualified Motion Analysis
- Dual Slope Temperature Compensation
-
60 lb. Pet Immunity
- Optional 100 lb Animal Immunity Lens Included
- Multi-Function LED
- Ambient Temperature Detection
- Self Dimming LED
- Detection Range: 40 ft x 56ft (12m x 17m)
-
Color:
- UPC: 6938942620441 (White) P/N: QT-40
Specifications:
| Specifications | QT40 |
|---|---|
| Pattern Coverage | 40' x 56' |
| Pulse Count | Jumper Selectable: PC2, PC4 |
| Warm Up Time | 25 - 45 Seconds |
| Alarm Period | 2.4 Seconds, Retriggerable |
| Visual Indicator | Red LED (Selectable On/Off) |
| Input Voltage | 10 to 16 VDC, 12 VDC Nominal |
| Mounting Height | 7 to 8.5 ft (2.1 to 2.6 m) |
| Operating Temperature | -10° C ~ +55° C (-14° F ~ +131° F) |
| Weight | 3.0 oz / 83 g |
| Dimensions | 4.8 in H x 2.5 in W x 1.7 in D / 122mm x 64mm x 43mm |
