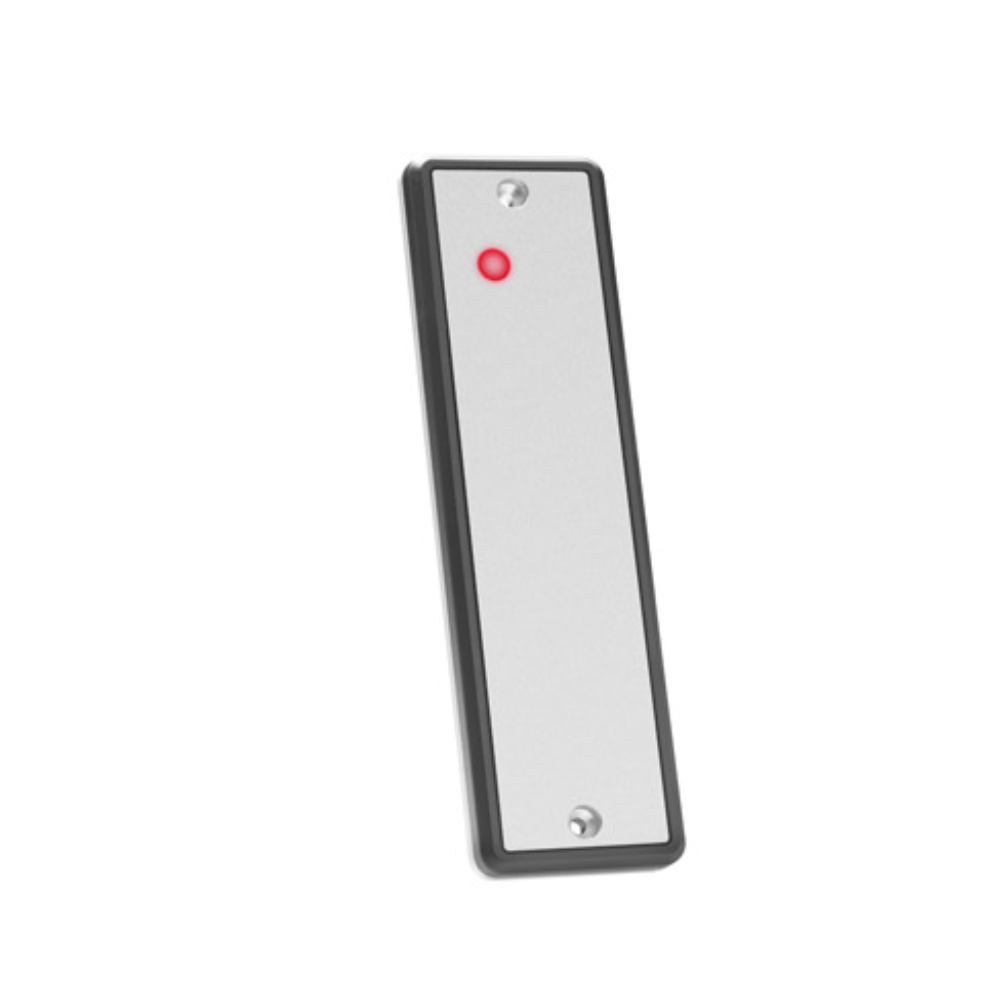

Rosslare, AY-E20 Multi Format RFID Proximity Reader EM format

Professional-grade access control reader from Rosslare, a trusted name in security. The AY-E20 delivers reliable EM format card recognition with industry-standard Wiegand output, making it compatible with most access control systems.

Its ultra-compact 8mm depth allows discreet installation on any surface, while the IP68 rating and epoxy potting ensure performance in demanding indoor and outdoor environments.

Tri-colour LED feedback and integrated sounder provide immediate user confirmation, while optical tamper detection protects against unauthorised bypass attempts.

 Engineered for Australian conditions with an extended operating temperature range.

Specifications:

• Default format Wiegand 26 Bit / Clock & Data
• Supports EM type cards & tags
• 2 Tri-Coloured LED indicators & sounder
• Optical tamper
• Read range 35mm
• Fully potted (Epoxy filled & sealed)
• Water resistant IP68
• Operating temp -31°C – 63°C
• 05 ~ 16V DC input
• Dimensions (mm): 155 (H) × 45 (W) × 8 (D)
