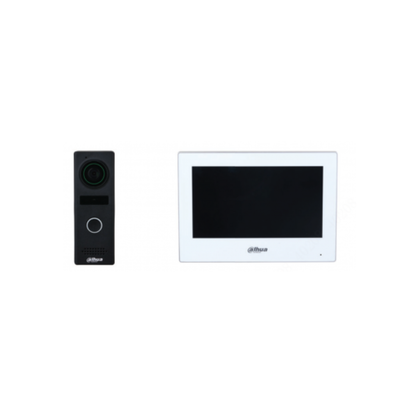

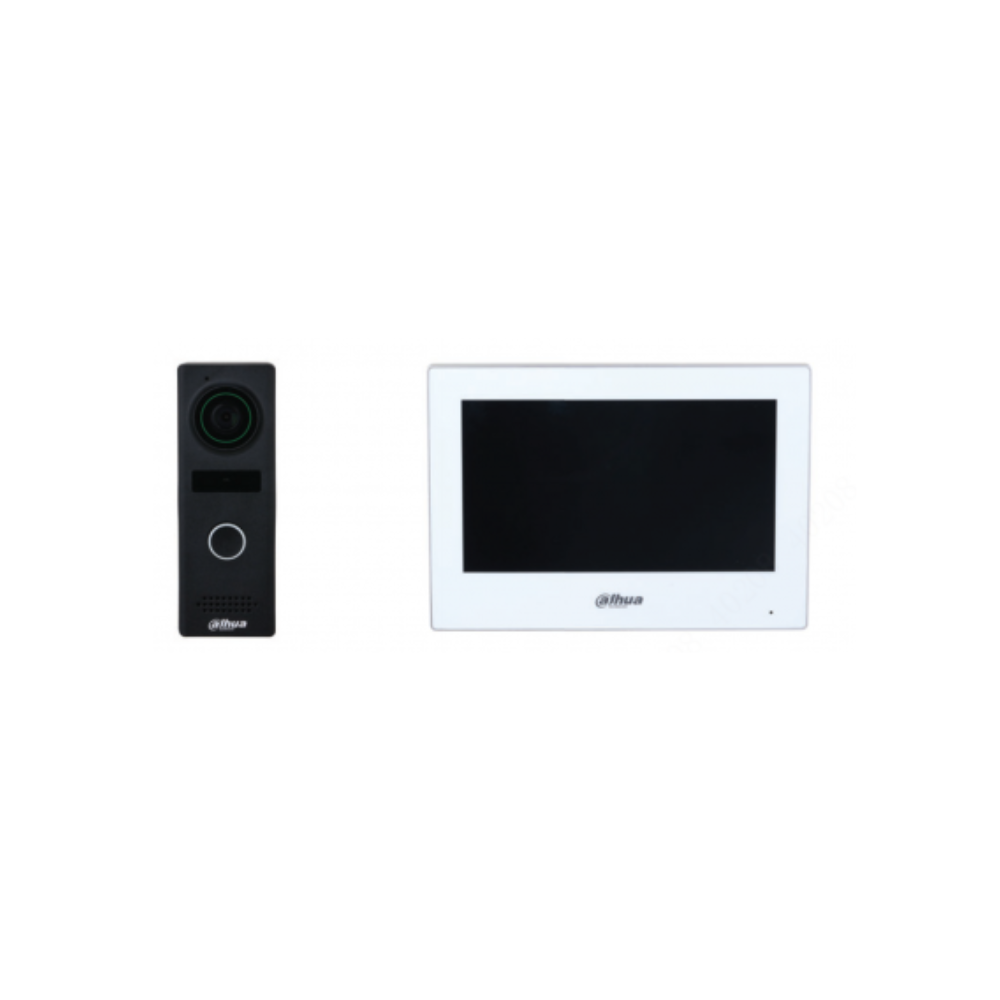

Dahua KTH01M 4-wire Intercom Hybrid Kit

The Dahua KTH01M Hybrid Intercom Kit combines the simplicity of traditional 4-wire installation with modern IP functionality, delivering reliable video intercom communication and remote access control for residential and light commercial applications.

Indoor Monitor (VTH)

The included 7-inch TFT capacitive touchscreen monitor provides clear video display and intuitive operation with a 1024 × 600 resolution screen. Built-in Wi-Fi and mobile app support allow users to answer calls, monitor live video, receive notifications, and unlock doors remotely from a smartphone or tablet.

Supporting both analog and IP integration, the system is compatible with Dahua VTO door stations, VTH indoor monitors, and IP cameras, making it ideal for hybrid upgrade installations.

Features:

• 7-inch capacitive touchscreen display
• 1024 × 600 resolution
• Built-in Wi-Fi connectivity
• H.264 video decoding
• Group calling support
• Video and snapshot recording via optional SD card
• 6 alarm inputs and 1 alarm output
• Mobile app support for remote access and control
• Standard PoE (Power over Ethernet)
• Surface-mount installation

Outdoor Video Door Station (VTO)

The outdoor station provides reliable visitor communication and secure access control with video calling, voice communication, and remote unlock functionality.

Digital Wide Dynamic Range (DWDR) technology improves image clarity in difficult lighting conditions, while the IP66-rated housing offers protection against dust, rain, and harsh outdoor environments.

Features:

• Video and voice calling
• Remote unlock functionality
• Adjustable call volume
• Multiple selectable chime tones
• DWDR image enhancement
• Mechanical call button
• IP66 weather-resistant design

Suitable for homes, apartments, offices, and retrofit intercom upgrades requiring dependable communication and convenient mobile access control.
