Dahua IP Villa Intercom KIT with Keypad - Surface mount

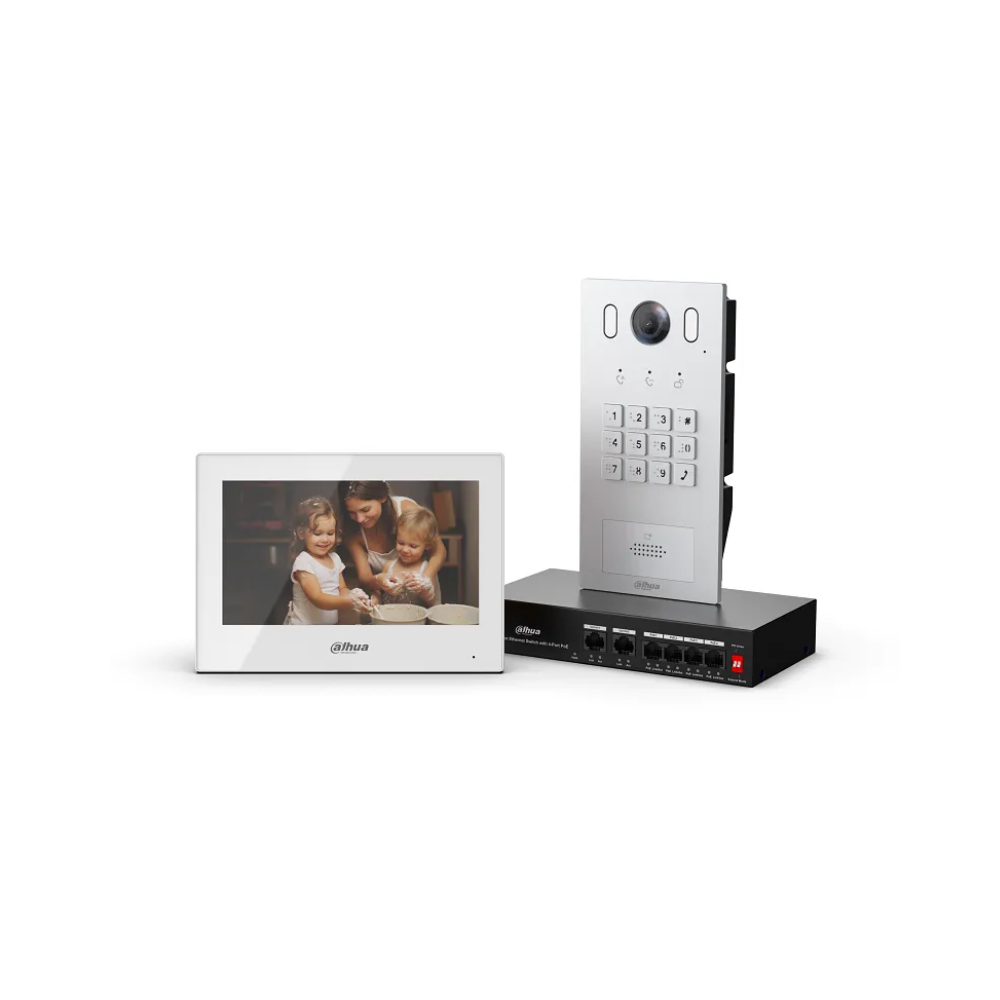

The Dahua KTP05S-S2 IP Villa Intercom Kit delivers a professional and cost-effective access control solution for residential and commercial applications. Combining a durable outdoor video door station with a 7-inch indoor touchscreen monitor, this kit provides secure visitor management, flexible authentication methods, and seamless integration with modern IP security systems.

Constructed with an elegant aluminium front panel and mechanical keypad, the outdoor station is designed for long-term reliability in demanding environments. The built-in 2MP HD camera delivers clear video for accurate visitor identification, while multiple unlock methods including password, IC card, and remote unlock provide convenient and secure access control.

Supporting up to 5,000 users and 10,000 cards, the system is ideal for villas, apartments, gated properties, offices, and small commercial sites requiring scalable access management.

Key Features

Outdoor Video Door Station (VTO)

• 2MP HD camera for clear visitor video
• Durable aluminium panel construction
• Mechanical keypad for reliable operation
• Supports password, IC card, and remote unlocking
• Supports up to 5,000 users and 10,000 cards
• Wiegand interface for integration with external readers and controllers
• 12 VDC, 600 mA power output
• IP65 weather-resistant design*
• IK08 impact protection rating
• Standard PoE support

Indoor Monitor (VTH)

• 7-inch TFT capacitive touchscreen
• 1024 × 600 resolution
• Door station and IPC monitoring support
• H.265 and H.264 video decoding
• 6-channel alarm input and 1-channel alarm output
• Standard PoE powered

Professional Access Control Integration

The KTP05S-S2 supports integration with existing access control and surveillance infrastructure through Wiegand connectivity and IP monitoring compatibility. Multiple alarm inputs allow expanded perimeter monitoring and automation, while PoE simplifies installation by combining power and data through a single cable.

Its IP65 and IK08 ratings make it suitable for exposed outdoor installations, delivering reliable performance in harsh weather conditions and high-use environments.

* Silicone sealant is required for the shell during installation. Refer to the quick start guide for installation requirements.
