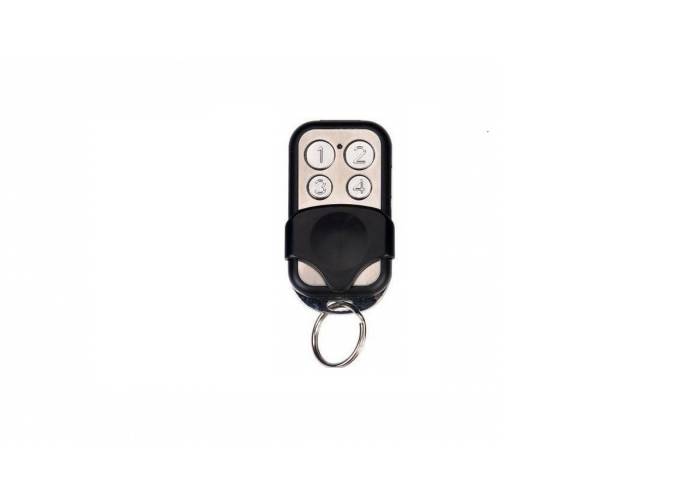

DFM, RTW01-4, Activor New Wiegand Access Control Transmitter 4 Ch Remote

DFM, RTW01-4, Activor New Wiegand Access Control Transmitter 4 Ch Remote

The DFM RTW01-4 is a 4-channel Wiegand remote from Activor, designed for access control applications. It provides reliable performance in both residential and commercial settings. The remote is ideal for various control needs, offering flexibility with its four programmable buttons. It supports Wiegand communication for compatibility with most systems, and its compact design ensures easy integration. This remote is ideal for users who require a robust, multi-channel transmitter for access control and security management, allowing simple and effective operation.

Features

• Sliding cover to prevent accidental activation of a button
• Sturdy design with stainless steel plate and attractive metallic frame
• Long battery life: 3 years in normal operating conditions
• Long RF range: 100m (open air)
• Can be fitted with prox tag: EM, HID or Mifare (tag programmers also available)

Specifications:

• Operating Range: 100m (open air)
• Keeloq rolling code: 4.3 billion combination
• 433 MHz other frequencies are available on request
• SAW resonator (filter) locked (+/- 75KHz); Superhet technology
• Transmitting power: <10mW
• Operating Voltage: 3V powered by 1 lithium battery CR2032
• Battery Life: A minimum of 3 years under normal operating conditions
• Current: <1uA standby; 12mA max.
• Low battery indication
• Auto shutoff: the remote stops transmitting if a button gets pressed for 25s
