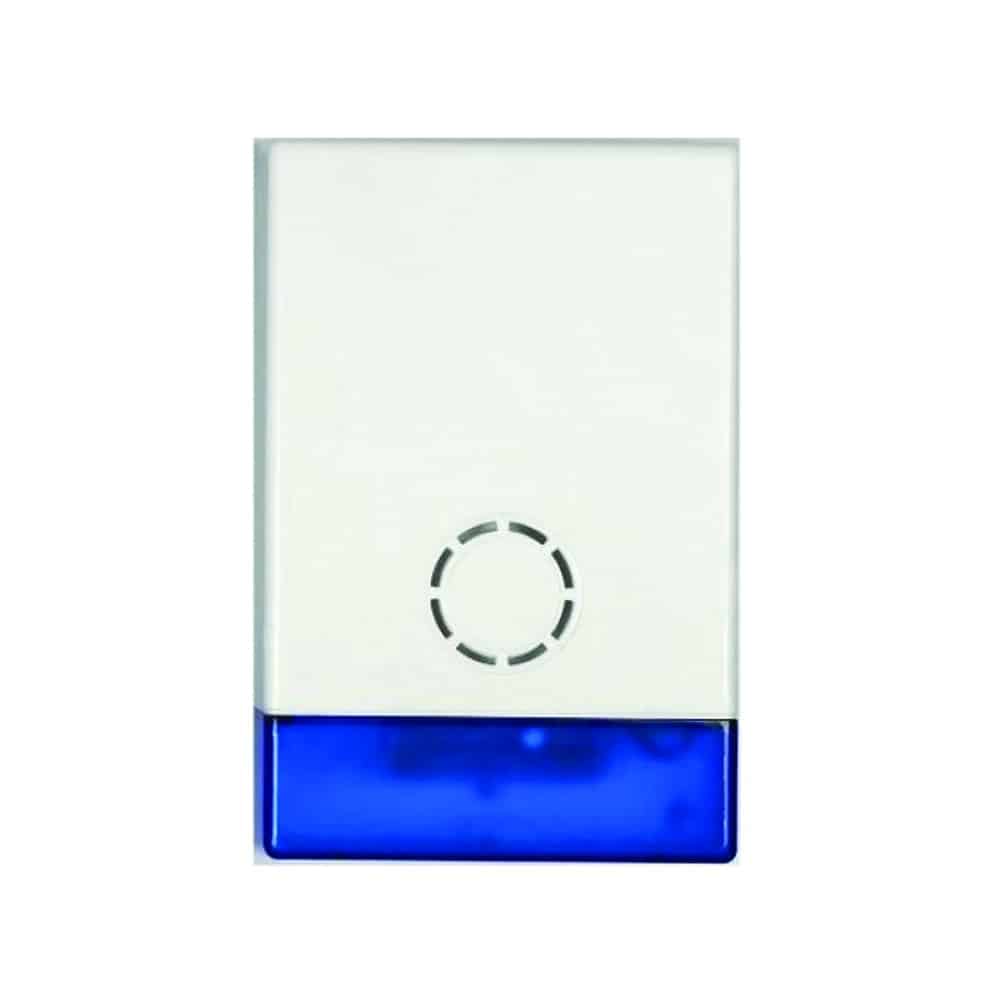

DFM WP70A, Secor Wireless Siren, 2 Ways, Supervision On Tamper, Low Battery and RF Comm

Secor® WP70 is truly the new generation of 2-way wireless siren. Our innovative, patented design ensures optimum security, reliability and performance. TheGreensmart® power saving technology allows WP70 to achieve a battery life of up to 5 years.

Siren:

• Innovation patent - designed for a high level of security, performance and convenience
• Greensmart® power saving technology€“ long battery life up to 5 years
• Full supervision: tamper, low battery and RF interruption
• Long RF range: 200m (open air)
• IP55€“ twin layer plastic casing for enhanced weather protection
• Easy programming with dual function tamper switch
• Able to distinguish between burglar and fire alarms

Universal local transceiver:

• Universal O/C output; can be easily connected to any alarm panel
• Flexible zone utilization€“ option to use three, two or even one zone for supervision reporting.

Proprietary local transceiver:

• Ready for any proprietary (alarm panel) interfacing
• Compact design; easy to be fitted into any alarm panel box

Specifications (DFM WP70A):

Siren:

• RF range:    200m (open air)
• Battery:  19Ah lithium 3.60V
• Current:      0.25€“ 300mA
• Tx power:    <10mW
• SPL: 100dBm
• IP rating:     55
• Housing:     UV treated Polycarbonate
• Environment:  -10€“ 50ºC/95% RH (max)
• Dimensions:   239mm (L) x 158mm (W) x 58mm (H)



Local universal and proprietary transceiver:

• Voltage:      5-15VDC
• Current:      6mA standby
• Tx power:     <10mW
• Frequency:   433.92MHz
• Dimensions:  87mm (L) x 63mm (W) x 27mm (H)€“ universal

                42 mm (L) x 25mm (W) x 4mm (H)€“ proprietary
