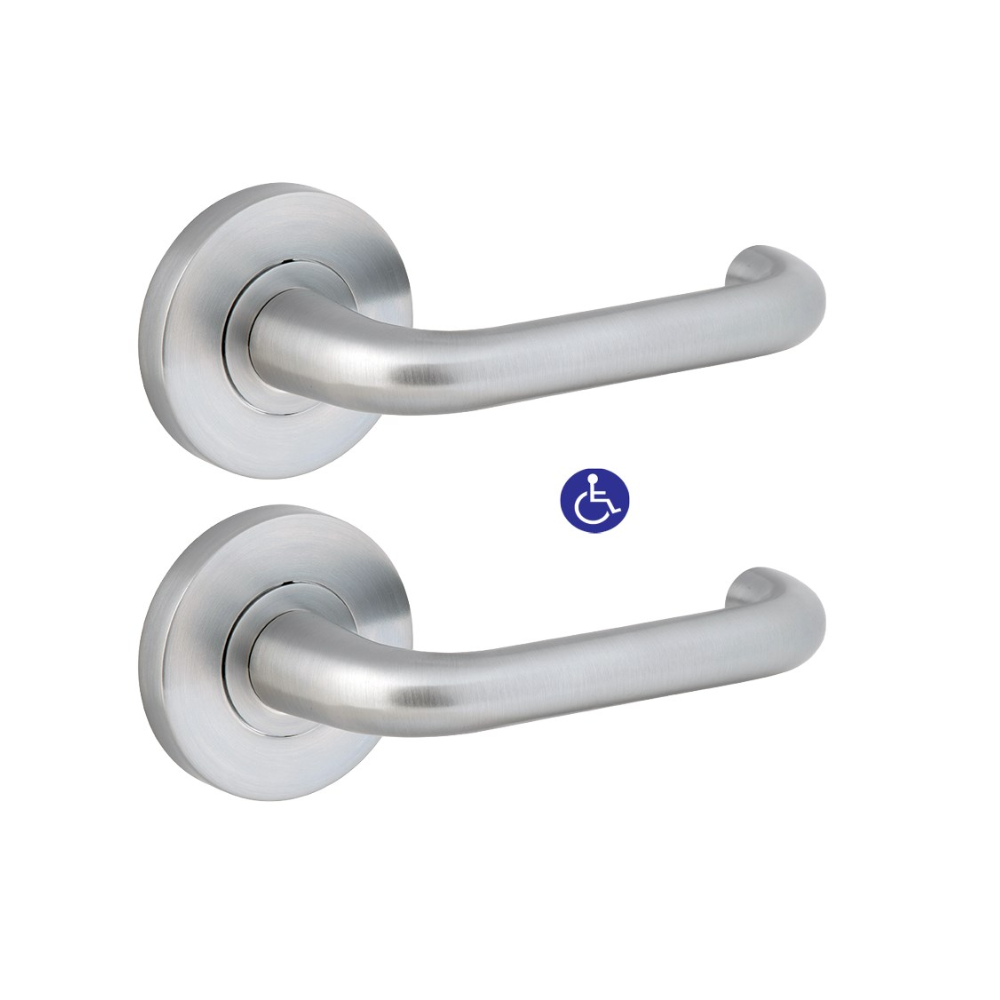

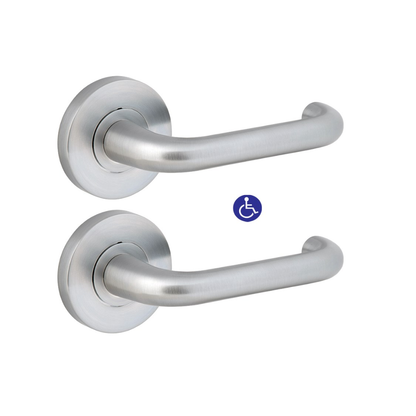

DK830018SX Dormakaba Furniture Vision Round Rose Pair with 18 Lever Satin Chrome
DK830018SX Dormakaba Furniture Vision Round Rose Pair with 18 Lever Satin Chrome
Need a product not listed online? Contact our team and we’ll source it for you.
View full details
DK830018SX Dormakaba Furniture Vision Round Rose Pair with 18 Lever Satin Chrome - 8300/18SX
The Dormakaba Vision Range is the perfect fusion of innovative engineering, eye catching design and durability.
Suitable for either residential or commercial applications without compromising functionality or style. These models feature a stylish round rose with concealed fittings.
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
- Manufactured using premium quality solid die cast zinc.
- Designed to fit back to back.
- Supplied with 18 series lever.
- Disabled access AS1428.1 compliant lever.

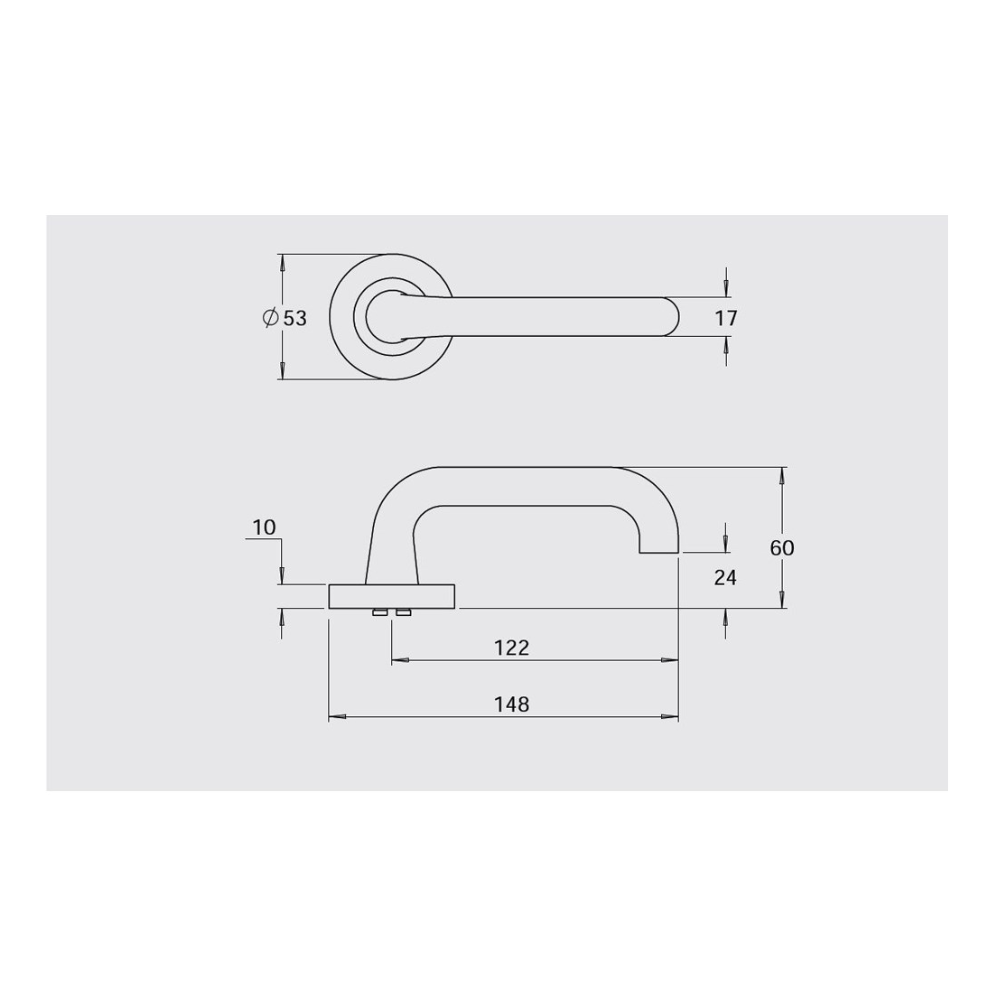

- Rose measures 53 x 10 mm.
- Horizontal or vertical fixing centres 41 mm.
- Bolt through fixing.
- Suits Dormakaba DKMS2602SSS series mortice locks.
- Suits door thickness 32-50 mm.
- Supplied as a set.
- Split & solid spindles and fixing screws supplied.
- Fire rated up to 4 hours.
- Finished in satin chrome.
Technical Specifications
|
Brand |
DORMAKABA |
|
AS1428.1 Compliant Lever (AS1428.1CO) |
Yes |
|
Finish |
Satin Chrome |
|
Plate Type |
Round Rose |
|
Rose Diameter (in mm) |
53 |
|
Suits Door Thickness |
32 mm to 50 mm |
|
Fire Rated |
Yes, 4 hours |
|
Material |
Diecast Zinc |
|
Sold As a Set |
Yes |
|
Plate Has A Lever |
Yes |
