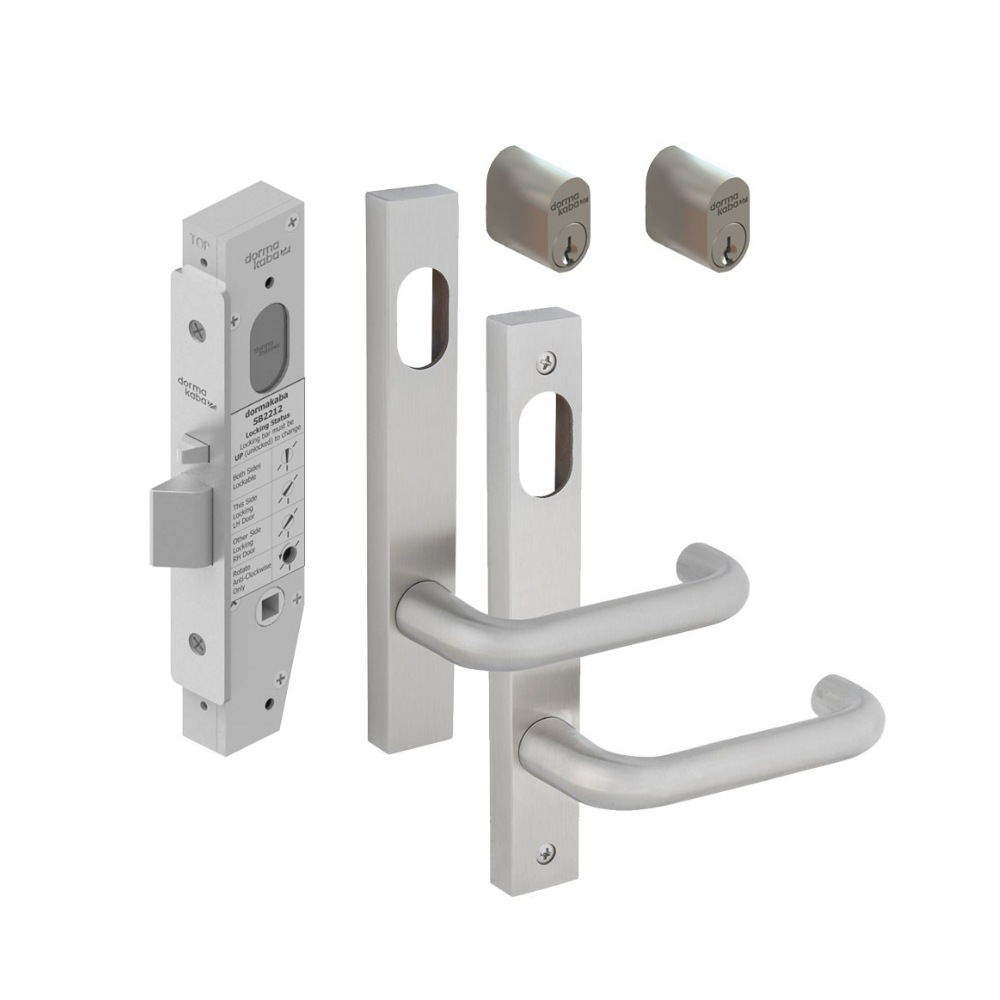

DKSB2212KIT1 Dormakaba SB2212 Double Cylinder Lock Kit with 6400 Square End Plate Furniture & KD Cylinders SSS - SB2212KIT/DBL/KD SSS 9400000017164

The Dormakaba SB2212 short backset mortice lock is engineered for commercial shopfront applications.

This double cylinder kit features 316 grade stainless steel furniture and 6400 square end plate, delivering durability and security in high-traffic environments. Includes KD cylinders for master key compatibility.

The mortice lock kit includes the following products:

• 1 x SB2212SSS 23 mm backset mortice lock.
• 1 x 6400/70SSS external lever on plate with cylinder hole.
• 1 x 6401/70SSS internal lever on plate with cylinder hole.
• 2 x 570 cylinders with keys.

 BCA AS1428.1 -2009 compliant leversets.

Mortice lock

• 23 mm backset.
• Operated by key or handle outside or by turnsnib, key or handle inside.
• Cylinder or handle retracts the latch.
• Suits door thickness 32-50 mm.
• 15 mm stainless steel reversible latchbolt.
• Stainless steel faceplate and strike.
• Easily adapted to most function.
• Supplied with turn snib adaptor.
• Supplied with cylinders.
• Compatible to most restricted keying systems.
• Electric strike compatibility.
• Finished in stainless steel.

External furniture

• Narrow exterior square end plate.
• Cylinder hole with 70 series lever.
• Disabled access AS1428.1 compliant lever.
• Manufactured using 316 corrosion resistant solid stainless steel.
• Concealed fixing.
• Plate size 185 x 26 x 12.7 mm.
• Plates are designed to fit back to back.
• Suits door thickness from 32-50 mm.
• External plates supplied with fixing screws.
• Screw fixing centres 160 mm.
• Finished in stainless steel.

Internal furniture

• Narrow interior square end plate.
• Cylinder hole with 70 series lever.
• Disabled access AS1428.1 compliant lever.
• Manufactured using 316 corrosion resistant solid stainless steel.
• Visible fixing.
• Plate size 185 x 26 x 12.7 mm.
• Plates are designed to fit back to back.
• Suits door thickness from 32-50 mm.
• Screw fixing centres 160 mm.
• Finished in stainless steel.
