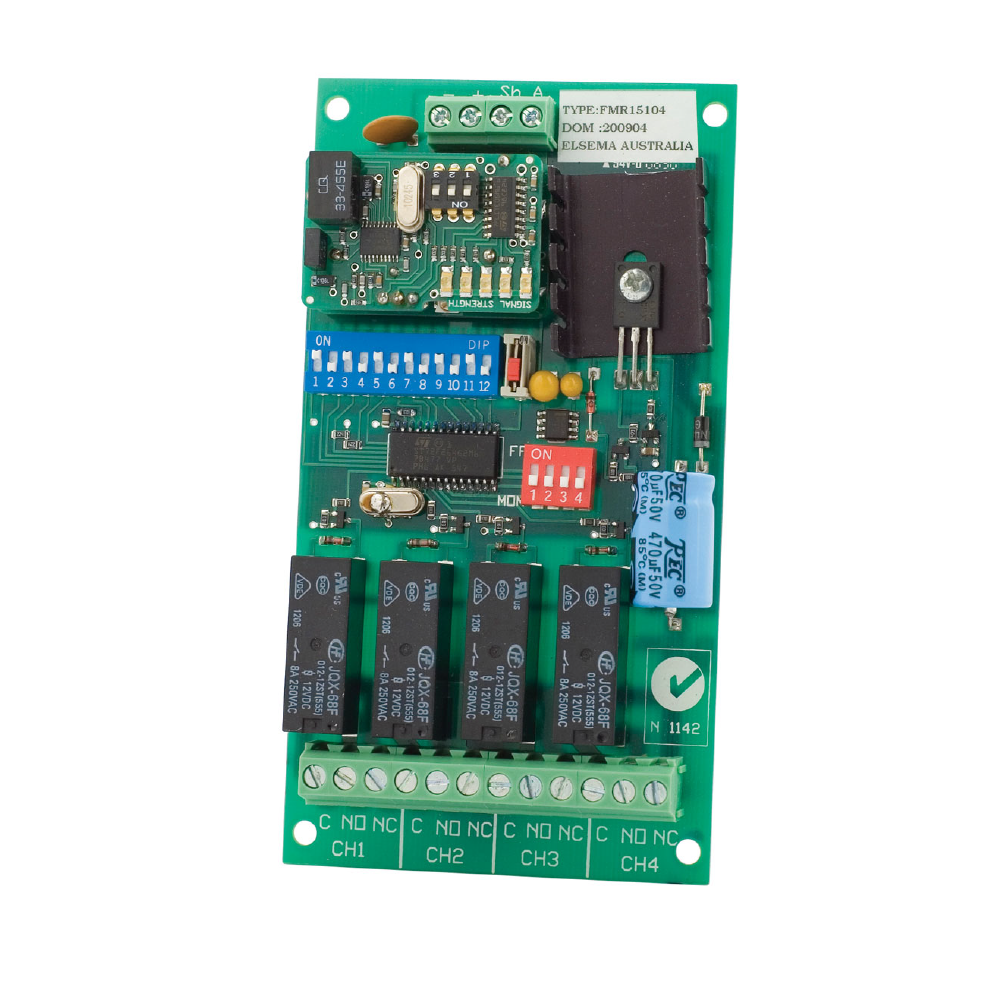

Elsema, FMR15104 4 Ch Receiver 151MHz 12-24VAC/DC

Elsema, FMR15104 4 Ch Receiver 151MHz 12-24VAC/DC

The Elsema FMR15104 4-Channel FM Series 151MHz Receiver delivers reliable and versatile control solutions for various applications. Operating at 151MHz, it ensures robust and interference-resistant performance, making it ideal for industrial and commercial use. With four independent channels, the receiver supports multi-functionality, enabling users to control multiple devices such as gates, doors, or lighting systems with ease.

The receiver supports straightforward integration, featuring screw-type terminals that seamlessly connect to switches, sensors, or other input devices. Its wide operating voltage range (12–24VAC/DC) enhances compatibility with diverse setups. The user-friendly dip switch coding simplifies transmitter-receiver pairing, saving time during installation.

Built with durability in mind, the FMR15104 is housed in a rugged enclosure, ensuring long-lasting performance in demanding environments. This receiver stands out for its versatility, reliability, and ease of use, providing an efficient control solution for complex systems.

This receiver gives you four relay outputs with a contact rating of 8 amps at 240VAC. The relay mode can be set to momentary or latching.

The user can select 8 different narrow band frequencies and program unlimited number of transmitters to the receiver. With a narrow band FM 151MHz signal from the transmitter a line of sight operating range of 5000 metres is possible. The receiver uses a crystal oscillator circuit that ensures high frequency stability allowing optimal performance in the receiving range.

Features:

• Four channel receiver with relay outputs
• Supply voltage can be AC or DC
• Built-in noise or signal strength indicator
• User can select 8 different frequencies
• Momentary, Latching, Security latching and Off delay modes are all user selectable
• Easy code setup with dip switch settings
• Antenna:ElsemaANT151M
• Usable Transmitters: All Elsema typeFMT151series
• Ideal for Industrial Automation
