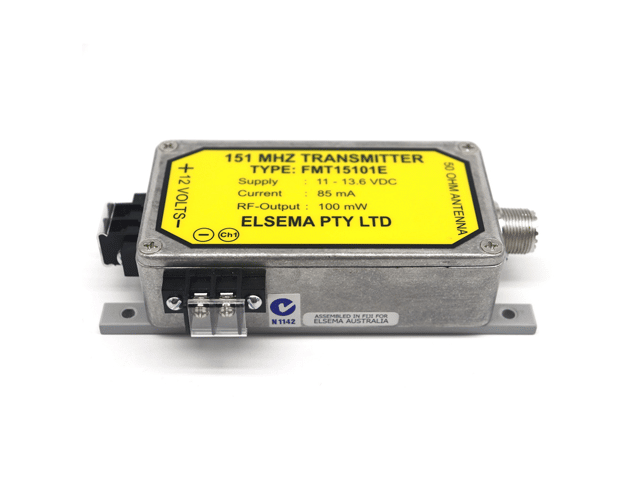

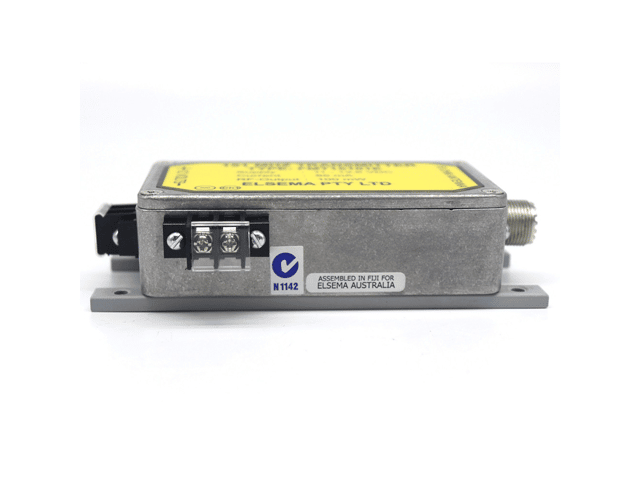

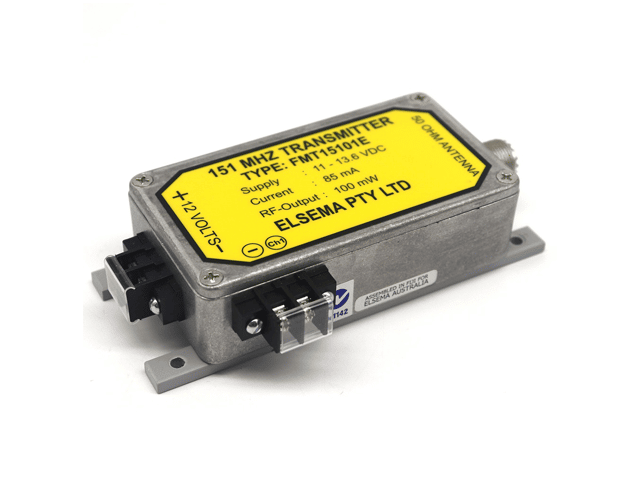

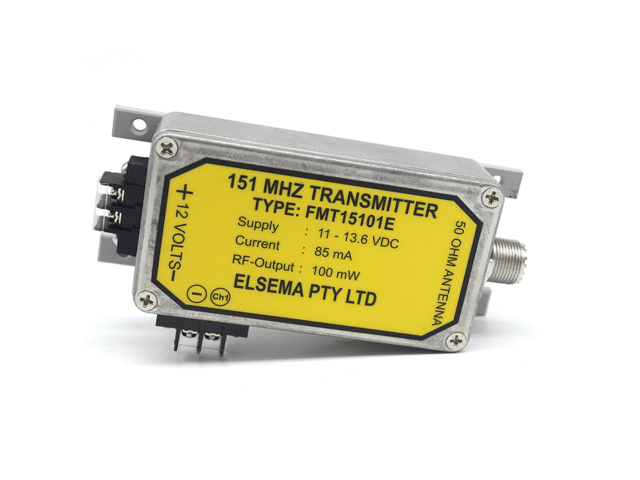

Elsema, FMT15101E, 1 Ch Fixed Location 151MHz
The Elsema FMT15101E is a 1-channel fixed-location transmitter operating on the 151MHz frequency band. Designed for reliability and versatility, this transmitter is ideal for controlling gates, doors, and industrial equipment. It delivers a robust and interference-resistant signal, ensuring consistent performance even in challenging environments. The compact and durable design makes it suitable for both indoor and outdoor installations. With straightforward setup and secure coding, it simplifies integration into existing systems while enhancing security. Its compatibility with Elsema receivers and low power consumption further optimize its efficiency, making it a dependable solution for diverse automation and control applications.
Features:
- Long rangeup to 5km.
- 100mW Transmitter with current consumption of 85mA
- Not affected by Natural or man-made electrical interference
- Specially programmed micro-controller
- Simultaneous channel transmission is possible; i.e. more than one channel can be activated at a time.
- 2 Years Manufacturers Warranty*
- Free Shipping Australia-Wide*
Includes:
- Genuine Transmitter in enclosure
- Programming Instructions
Suited for Elsema FMT15101E:
- Pump Control
- Long distance panic button
- On/Off applications in agricultural devices
- Security alarm
- Basic Telemetry eg. Water level indication
| Power Supply |

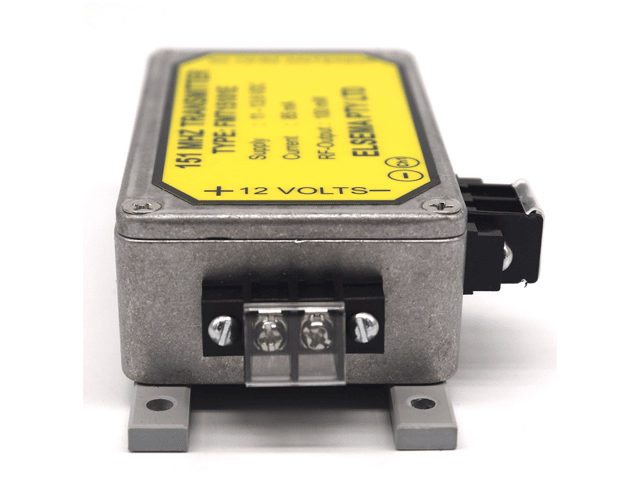

11 to 13.6 VDC (for constant RF-Output) , screw type terminal Absolute maximum 14VDC |
|
| Current Consumption | Nominal 85mA at 12VDC supply (Transmitting) Nominal 12mA on standby (10uA on sleep mode, all inputs off) | |
| Operating Frequency | 151.6MHz (8 selectable frequencies) | |
| Operating Temperature Range | 0 - 50°C | |
| Type of Emission | Narrow-band-width Frequency Modulation | |
| R.F. Output Power | 100mW, into 50 ohms SO239 socket | |
| Baud Rate | 40 to 4800bps | |
| Digital Coding System On-board | 12-way Code Switch | |

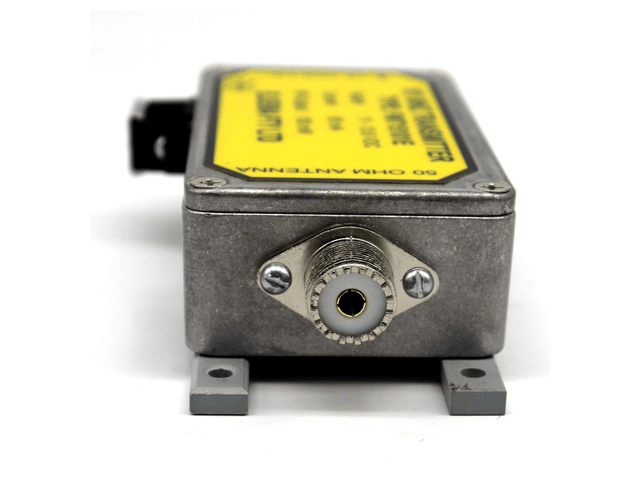

| Antenna | SO239 socket is provided | |
| Dimension |
90 X 56 X 15 mm (PCB Assembly) |
140 X 60 X 34 mm (Enclosed). |
| Mounting Hole Size | 4.00 mm or 5/32 (PCB Assembly) | 4.76 mm or 3/16 |
| Mounting Hole Spacing | Length 76 mm (3.00) Width 45 mm (1.77) (PCB Assembly) | Length 125 mm (4.92) Width 45 mm (1.77) (Enclosed). |
| Weight | 85 grams (PCB Assembly) | 225 grams (Enclosed). |
| Useable Operating Range | Up to 5000 meters, depending on installation and type of antenna used. Recommended Antenna is Elsema ANT151M | |
| ‚ | ||
| Type | |
|---|---|
| Brand |
Elsema |
| Frequency |
151 |
| 151 Series |
Transmitter |
