Elsema, FOB43305, 5-Channel Penta Key-Chain Transmitter, With 5 Frequencies, 433MHz

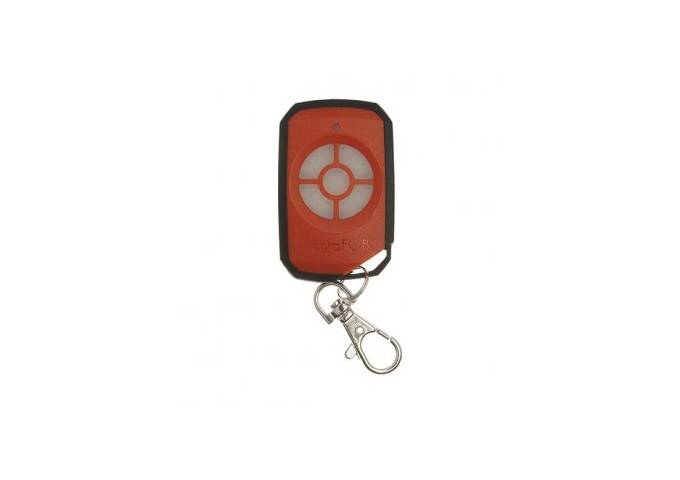

The Elsema FOB43305 is a 5-channel key-chain transmitter operating at 433MHz, offering five selectable frequencies. This compact device transmits encrypted signals, ensuring secure communication for various applications like access control or gate operation. Its versatile design enhances reliability and performance, making it ideal for both residential and industrial use.

The PentaFOB® 5 button is a 433MHz wireless remote control and is also available with proximity RFID. This dual technology combines a 433MHz remote control and RFID, enabling use for automatic gates, doors, lights, garage doors, panic buttons, and access control. Simply swipe the PentaFOB® remote instead of the tags or access cards.

The PentaFOB® also uses Frequency Hopping Spread Spectrum (FHSS). This means that when a button is pressed, it simultaneously transmits the encrypted code on five different frequencies. This makes it impossible for your remote control to be interfered or jammed.

Features:

  • Keyring transmitter with 1, 2, 4 or 5 channels.
  • Transmitter with built-in 13.56MHz RFID option available.
  • It simultaneously transmits the encrypted code on five different frequencies, preventing interference or jamming of the remote.
  • Uses Frequency Hopping Spread Spectrum (FHSS).
  • One of the most secure remote controls on the market.
  • Designed in Australia.

Specifications:

  • Over 17 billion encrypted codes.
  • Operating range of up to 100 metres depending on building structure and receiver antenna.
  • 15mA (typical) at 3.3 Volts DC supply during transmission.
  • Battery (CR2032) life of 2 years with average use.
  • 13.56Mhz RFID technology.
  • Operating frequency: 433.100 to 434.700 MHz.
