Elsema, GLR43302, 2 Ch Relay Out RX 433 MHz 11-28VAC/DC

Elsema, GLR43302, 2 Ch Relay Out RX 433 MHz 11-28VAC/DC

The Elsema GLR43302 is a 2-channel relay output receiver operating at 433 MHz, compatible with 11-28V AC/DC power. It offers reliable, long-range wireless communication, making it ideal for controlling multiple devices. Its compact design, durable construction, and seamless integration enhance flexibility for automation, access control, and security applications.

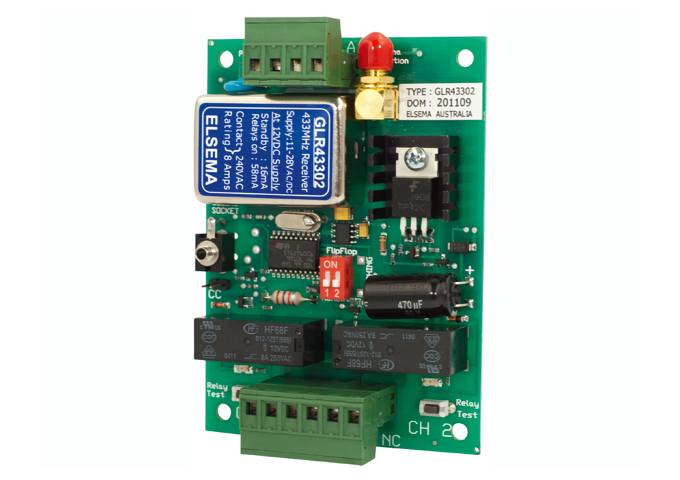

This Gigalink ^® receiver gives you two relay outputs that can switch currents up to 8 Amps each. There is an on-board switch to test each relay and a LED to indicate when the relay is “On”. The receiver has a power “On” LED to indicate that the correct supply voltage is connected. The receiver’s micro-controller can store an unlimited number of transmitters with a high-security level using the encrypted 32-bit digital code. Included with the receiver is the Gigalink ^® programming cable.

Features:

• Two-channel receiver with relay outputs
• Over 4 billion code combinations
• Supply voltage can be AC or DC
• Highly sensitive receiver input stage
• Crystal controlled for high reliability
• Can store an unlimited number of transmitters
• Momentary, Latching and Security Latching output modes can be selected by the user

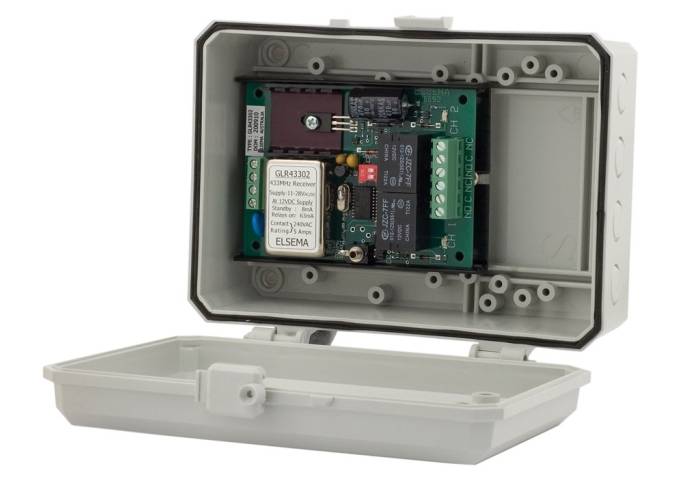

• E-version available with C1015 case
• Optional QM100 bracket available for easy mounting to cases or walls

Technical Data:

• Supply Voltage: 11.0 – 28 VAC/DC. Can use Elsema DC or AC power supply, 12PP1000 or 24PP.
• Current Consumption: 16mA standby
• Receiving Frequency: 433.920MHz (other frequencies available on request)
• Sensitivity: Better than 1 µV (for relay output to switch on)
• Relay Output: Two change over relay outputs, rated at 8 Amps / 240VAC
• Antenna: Elsema ANT 433MHz series
• Dimensions: 96 x 70 x 20mm
• Useable Transmitters: All Elsema type GLT433 series
• Ideal for Industrial Automation, eg Crane Control, winches, wireless cement truck operation.
